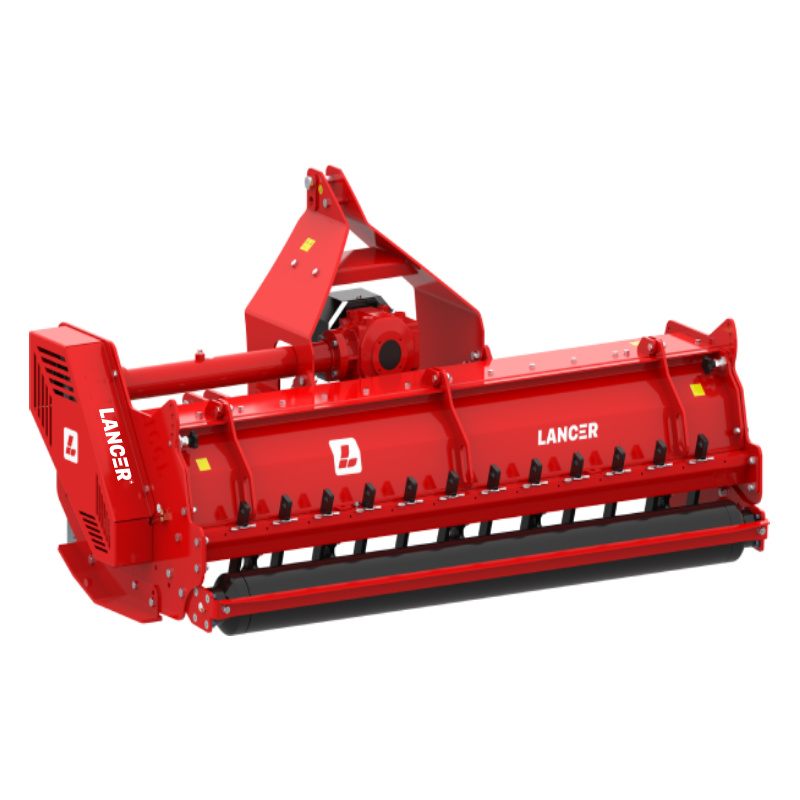

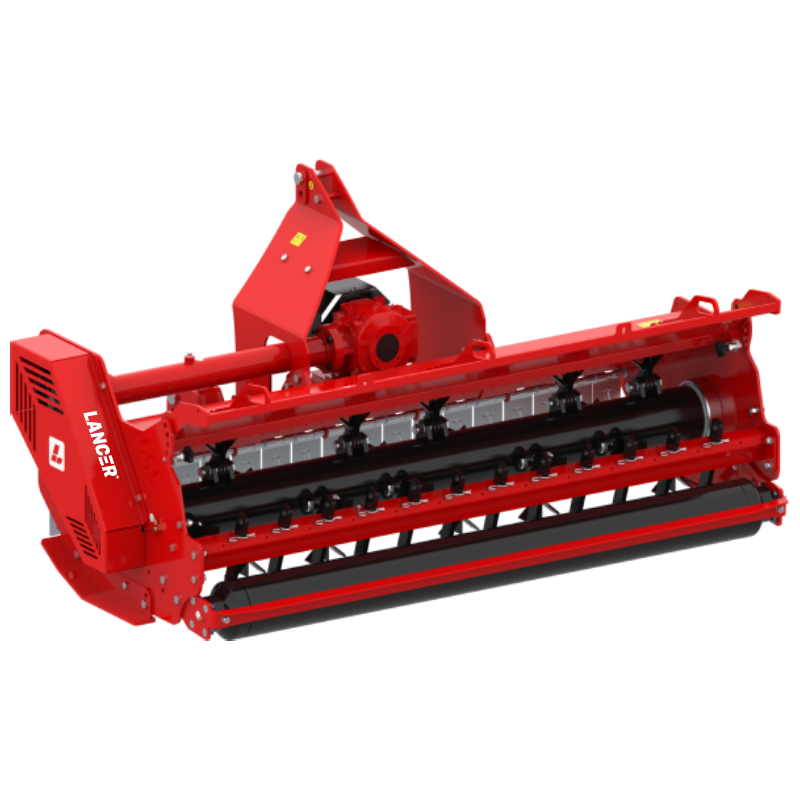

Lancer Jupiter JH Series – / Mulcher / Shredder / Flail Mower JH Series is ideal for shredding thick prunings, tree branches up to 8 CM in diametre. This series is specially designed for wide open fields, as well as brushwood and orchards. It can work with 40 to 80 HP Tractors .
Standard Equipment
- Electronically Balanced Rotor.
- Three Point Hitch Cat 2 Fixed
- Gearbox with Free Wheel 540 RPM
- 4 XPB Side Belt Transmission
- Rear Roller Adjustable in 3 Positions.
- Front Protection with Flaps
- Back Door Easy to Open & Close (4 Adjustible Position Locking)
- Side Skids Adjustable in 2 Positions.
- Counter Knives.
- Advanced Tool Kit.
Technical Chart
Features
On Request
Technical Chart
Model No. |
Working Width (MM) |
Power Requirement KW HP |
No. of Blade |
No of Hammer |
Weight Kg LBS |
Overall Dimension ( MM ) | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
W mm inch |
D mm inch |
H mm inch |
|||||||||||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||||||||
JH 160 | 1600 | 29 – 59 | 40 – 80 | 32 + 16 | 16 | 590 | 1301 | 1840 | 72 | 1130 | 44 | 990 | 39 |
JH 180 | 1800 | 33 – 59 | 45 – 80 | 32 + 16 | 16 | 610 | 1345 | 2040 | 80 | 1130 | 44 | 990 | 39 |
JH 200 | 2000 | 37 – 59 | 50 – 80 | 40 + 20 | 20 | 670 | 1477 | 2240 | 88 | 1130 | 44 | 990 | 39 |
JH 220 | 2200 | 41 – 59 | 55 – 80 | 40 + 20 | 20 | 710 | 1566 | 2440 | 96 | 1130 | 44 | 990 | 39 |
JH 240 | 2400 | 45 – 59 | 60 – 80 | 48 + 24 | 24 | 750 | 1654 | 2640 | 104 | 1130 | 44 | 990 | 39 |
JH 260 | 2600 | 48 – 59 | 65 – 80 | 48 + 24 | 24 | 790 | 1742 | 2840 | 112 | 1130 | 44 | 990 | 39 |
JH 280 | 2800 | 52 – 59 | 70 – 80 | 56 + 28 | 28 | 830 | 1830 | 3040 | 120 | 1130 | 44 | 990 | 39 |
JH 300 | 3000 | 56 – 59 | 75 – 80 | 56 + 28 | 28 | 870 | 1918 | 3240 | 128 | 1130 | 44 | 990 | 39 |
Features

Height Adjustable Rear Roller

Advanced Protection Flap

External Belt Tensioning Quick and Simple

Easy Back Door Opening

Maximum back door opening

Adjustable Side Skids

Easy Greasing Points

Counter Knives
On Request
- Y-Blades or Hammers
- Rakes
- Rear Rubber Flaps
- CE PTO Guard
- Front Rubber Flaps
- Front Protection Chains
- Extra Wear – Resistant Frame Sheet
