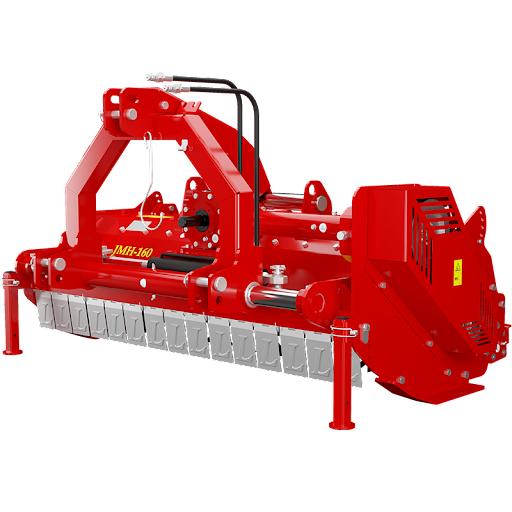

Lancer Jupiter JMH Series Shredder/Mulcher/Flail Mower is Hydraulic side shift shredder for grass and branches up to Ø 6 CM. This shredder is a multipurpose machine, suitable for shredding mowing grass, small stems and branch residue, thanks to the robust structure and equipment
Standard Equipment
- Mechanically offset
- 3 points linkage Cat. 2
- Gearbox with free wheel 540 RPM
- Tool type – Blades or hammers
- Back door easy to open &close (4 position locking with Plunger)
- Rear roller adjustable to 3 positions
- Side skids adjustable to 2 positions made in Hardox
- counter knives screwed in 2 place
- 4 XPB side belt transmission
- External belt adjustment easy and quick
- Electronically balanced rotor
- Front protection with flaps
Technical Chart
Features
On Request
Technical Chart
Model No. | Working Width (MM) | Power Requirement KW HP |
No. of Blade | No of Hammer | Weight Kg LBS |
Overall Dimension ( MM ) | Offset MM | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
W mm inch |
D mm inch |
H mm inch |
|||||||||||||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||||||||||
JMH 160 | 1600 | 29 – 45 | 40 – 60 | 32 + 16 | 16 | 511 | 1126 | 1810 | 71 | 1150 | 47 | 990 | 39 | 992 592 |
538 938 |
JMH 180 | 1800 | 29 – 45 | 40 – 60 | 40 + 20 | 20 | 545 | 1201 | 2010 | 79 | 1150 | 47 | 990 | 39 | 1065 665 |
665 1065 |
JMH 200 | 2000 | 33 – 45 | 45 – 60 | 44 + 22 | 22 | 580 | 1279 | 2210 | 87 | 1150 | 47 | 990 | 39 | 1165 765 |
765 1165 |
JMH 220 | 2200 | 37 – 45 | 50 – 60 | 48 + 24 | 24 | 615 | 1356 | 2410 | 95 | 1150 | 47 | 990 | 39 | 1265 865 |
865 1265 |
JMH 240 | 2400 | 41 – 45 | 55 – 60 | 52 + 26 | 26 | 652 | 1438 | 2610 | 103 | 1150 | 47 | 990 | 39 | 1365 965 |
965 1365 |
JMH 160S | 1600 | 29 – 45 | 40 – 60 | 32 + 16 | 16 | 508 | 1120 | 1810 | 71 | 1150 | 45 | 990 | 39 | 1065 665 |
465 865 |
JMH 180S | 1800 | 29 – 45 | 40 – 60 | 40 + 20 | 20 | 542 | 1195 | 2010 | 79 | 1150 | 45 | 990 | 39 | 1192 792 |
538 938 |
JMH 200S | 2000 | 33 – 45 | 45 – 60 | 44 + 22 | 22 | 577 | 1272 | 2210 | 87 | 1150 | 45 | 990 | 39 | 1265 865 |
665 1065 |
JMH 220S | 2200 | 37 – 45 | 50 – 60 | 48 + 24 | 24 | 611 | 1347 | 2410 | 95 | 1150 | 45 | 990 | 39 | 1365 965 |
765 1165 |
JMH 240S | 2400 | 41 – 45 | 55 – 60 | 52 + 26 | 26 | 652 | 1438 | 2610 | 103 | 1150 | 45 | 990 | 39 | 1465 1065 |
865 1265 |
Features

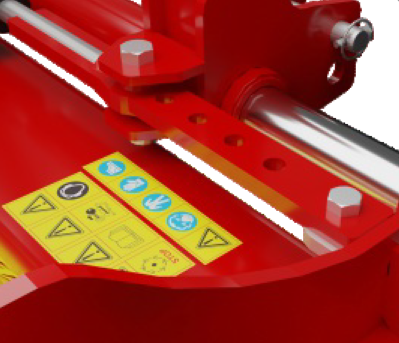

Easy mechanically offset option

Easy Greasing Point

Maximum back door opening

Mechanical offset

Rear Roller can adjust 3 Position

Advanced Protection Flap

Counter knives 3 CK-3

Counter knives 2 CK-2

Easy Hydraulic offset
On Request
- Hydraulic offset
- Wear-resistant counter knives CK2
- Wear-resistant counter knives CK3
- Tool type – Blades or hammers
