JUPITER
JL SERIES
![](http://www.lanceragrico.com/wp-content/uploads/2023/09/4000x3000-scaled.jpg)
![](http://www.lanceragrico.com/wp-content/uploads/2023/09/4000x3000-scaled.jpg)
mp1
mp1
![mp1](http://www.lanceragrico.com/wp-content/uploads/2023/09/4000x3000-scaled.jpg)
![mp1](http://www.lanceragrico.com/wp-content/uploads/2023/09/4000x3000-scaled.jpg)

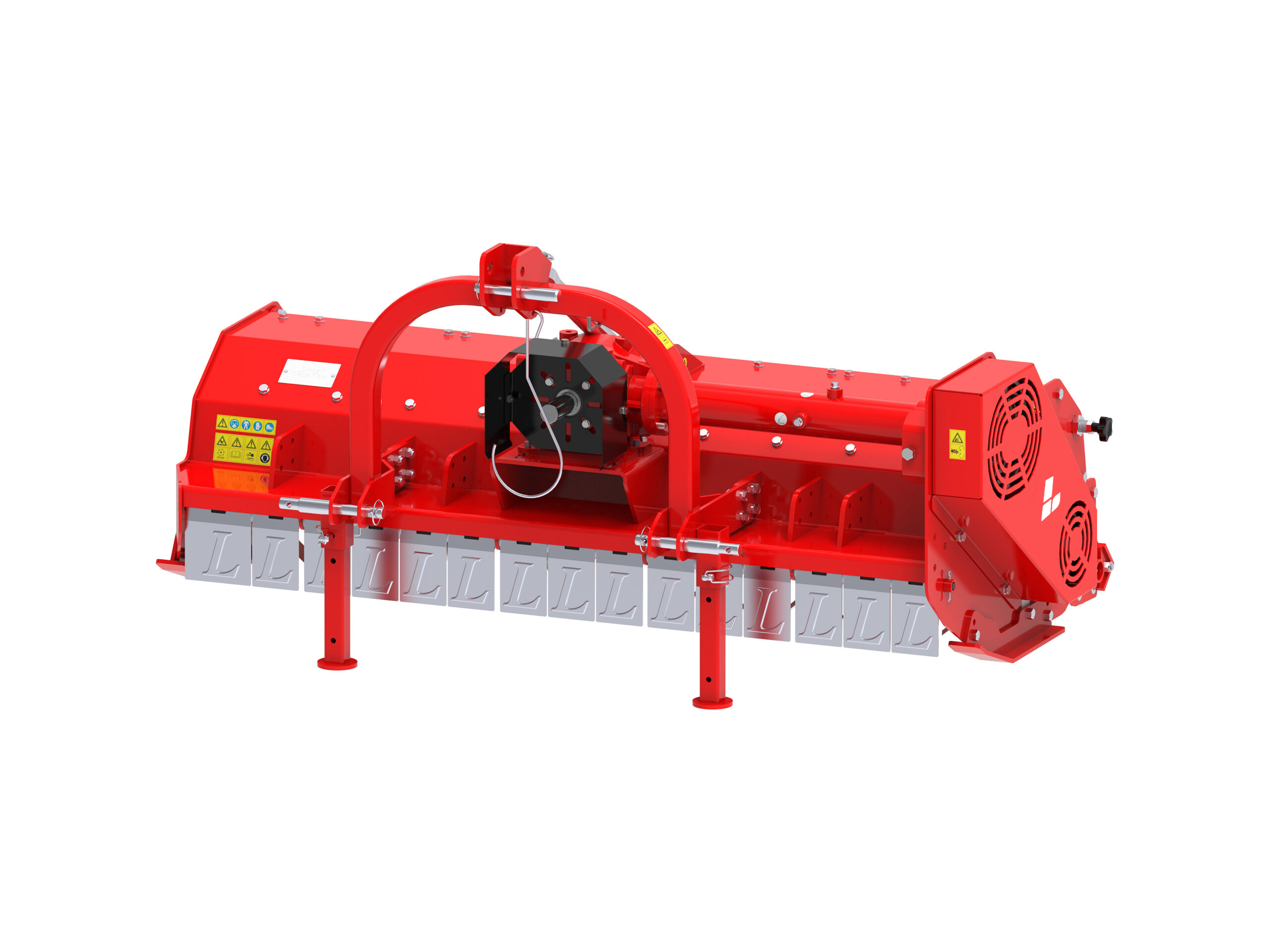

Lancer Jupiter
/ Mulcher / Shredder / Flail Mower JL Series is ideal for shredding grass and shrubs up to 4 CM in diameter.
This series is specially designed for working in Vineyards, Orchards and Paddy
Field. It can work with 25 to 55 HP Tractors.
Standard Equipment
- Electronically balanced rotor
- 3 points linkage Cat. I & II.
- Gearbox with free wheel 540 RPM
- Manual side shift
- 3 XPB side belt transmission
- Front protection with flaps
- Back door easy to open & close (4 position locking with Plunger)
- Rear roller adjustable to 3 positions
- Side skids adjustable to 2 positions
- counter knives screwed in 2 place
- Hammer Blades
- Advanced Tool Kit
Technical Chart
Features
On Request
Technical Chart
Model No. |
Working Width (MM) |
Power Requirement KW HP |
No. of Blade |
No of Hammer |
Weight Kg LBS |
Overall Dimension ( MM ) | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
W mm inch |
D mm inch |
H mm inch |
|||||||||||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||||||||
JL 100 | 1000 | 13 – 41 | 18 – 55 | 24 | 12 | 272 | 600 | 1170 | 46 | 1000 | 39 | 880 | 34.5 |
JL 120 | 1200 | 18 – 41 | 25 – 55 | 32 | 16 | 302 | 666 | 1370 | 54 | 1000 | 39 | 880 | 34.5 |
JL 140 | 1400 | 22 – 41 | 30 – 55 | 36 | 18 | 331 | 730 | 1570 | 62 | 1000 | 39 | 880 | 34.5 |
JL 160 | 1600 | 26 – 41 | 35 – 55 | 40 | 20 | 360 | 794 | 1770 | 70 | 1000 | 39 | 880 | 34.5 |
JL 180 | 1800 | 29 – 41 | 40 – 55 | 44 | 22 | 394 | 869 | 1970 | 77 | 1000 | 39 | 880 | 34.5 |
JL 200 | 2000 | 33 – 41 | 45 – 55 | 48 | 24 | 425 | 937 | 2170 | 85 | 1000 | 39 | 880 | 34.5 |
Features
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/lj-thum1.jpg)
Height Adjustable Rear Roller
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/Advanced-Protection-Flap.jpg)
Advanced Protection Flap
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/jl-thum3.jpg)
External Belt Tensioning Quick and Simple
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/p7-1.png)
Easy back door opening
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/p5-6.png)
Maximum back door opening
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/jl-thum6.jpg)
Adjustable Side Skids
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/jl-thum7.jpg)
Easy Greasing Points
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/jl-thum8.jpg)
Counter Knives
On Request
- Y-Blades or Hammers
- Rakes
- Rear Rubber Flaps
- CE PTO Guard
