JUPITER
JLH SERIES


mp1
mp1

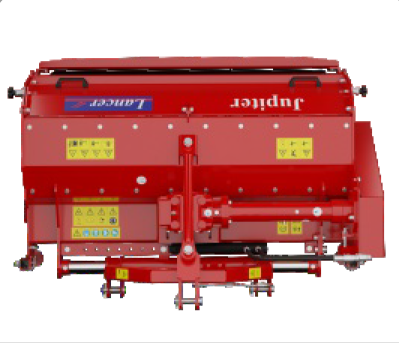

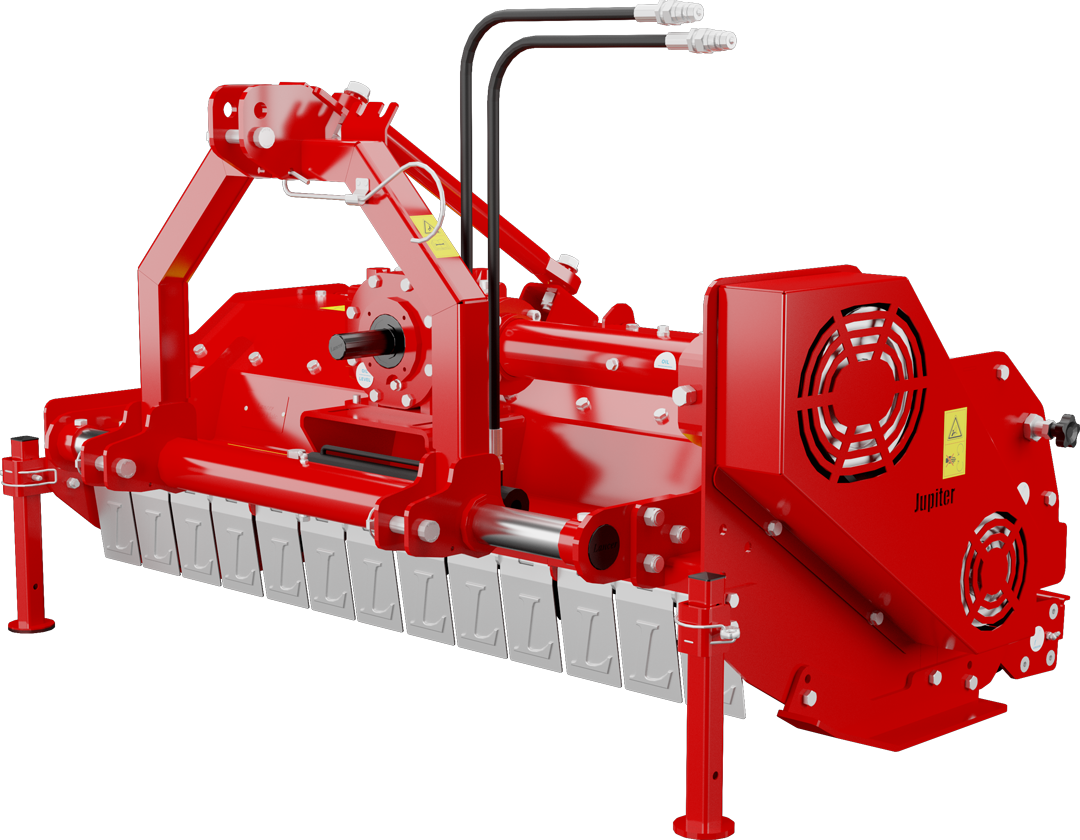

Lancer Jupiter JLH Series Shredder/Mulcher/Flail Mower is Hydraulic side shift shredder for grass and branches up to Ø 4 M. It is special because of the variety of its use as it is suitable for grass as well as cutting small pieces in vineyards and orchards. It has Hydraulic Side Shifting which facilitates Easy Shifting of Machine for Orchards and critical areas like corners, below the trees,etc.
Standard Equipment
- Electronically balanced rotor
- 3 points linkage Cat. I & II.
- Gearbox with free wheel 540 RPM
- Hydraulic side shift

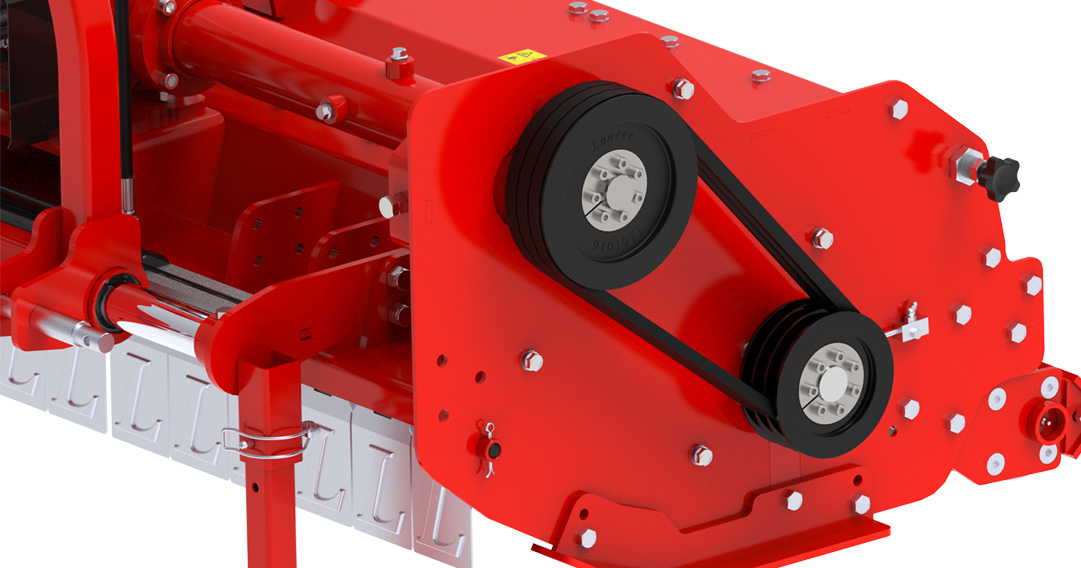

- 3 XPB side belt transmission
- Tool type – Blades or hammers

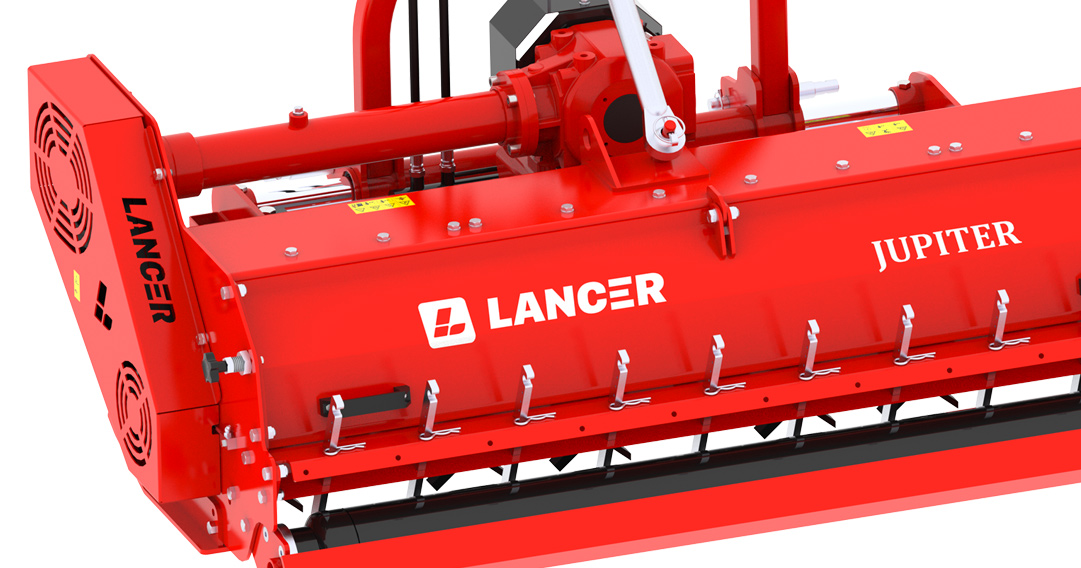

- Front protection with flaps
- Back door easy to open & close (4 position locking with Plunger)
- Rear roller adjustable to 3 positions
- Side skids adjustable to 2 positions
- counter knives screwed in 2 place
Technical Chart
Features
On Request
Technical Chart
Model No. | Working Width MM | Power Requirement KW HP |
No. of Blade | No of Hammer | Weight Kg LBS |
Overall Dimension ( MM ) | Offset MM | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
W mm inch |
D mm inch |
H mm inch |
||||||||||||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|||||||||
JLH 120 | 1200 | 18 – 41 | 25 – 55 | 32 | 16 | 321 | 708 | 1370 | 54 | 1055 | 41.5 | 880 | 34.5 | 300 |
JLH 140 | 1400 | 22 – 41 | 30 – 55 | 36 | 18 | 350 | 772 | 1570 | 62 | 1055 | 41.5 | 880 | 34.5 | 300 |
JLH 160 | 1600 | 26 – 41 | 35 – 55 | 40 | 20 | 379 | 836 | 1770 | 70 | 1055 | 41.5 | 880 | 34.5 | 300 |
JLH 180 | 1800 | 29 – 41 | 40 – 55 | 44 | 22 | 413 | 910 | 1970 | 77 | 1050 | 41.5 | 880 | 34.5 | 300 |
JLH 200 | 2000 | 33 – 41 | 45 – 55 | 48 | 24 | 425 | 937 | 2170 | 85 | 1050 | 41.5 | 880 | 34.5 | 300 |
Features

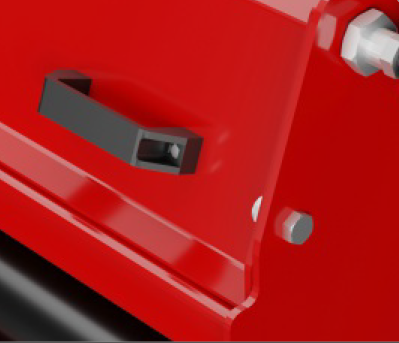

Easy to Open Back Door

Easy to Open Back Door Option-2

Hydraulic Side Shif

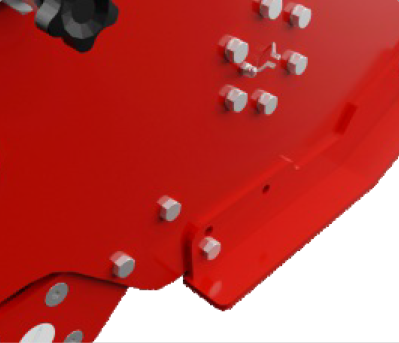

Easy Operable Side Skid

Rigid Rear Roller

Easy Greasing Point
On Request
- Blades
- Wear-resistant counter knives
- Mechanically side shift
