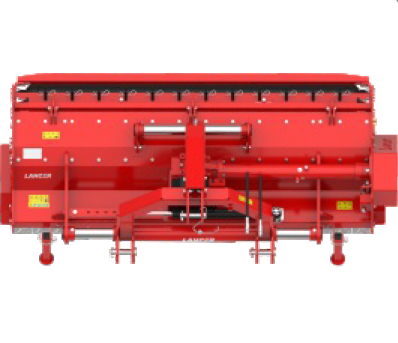

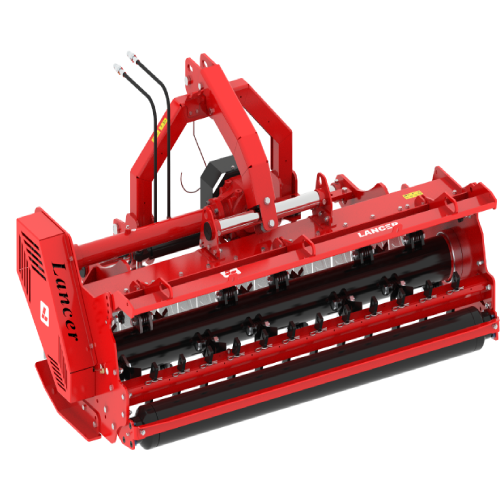

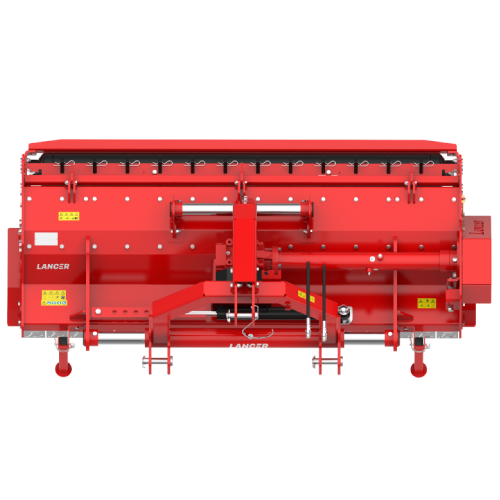

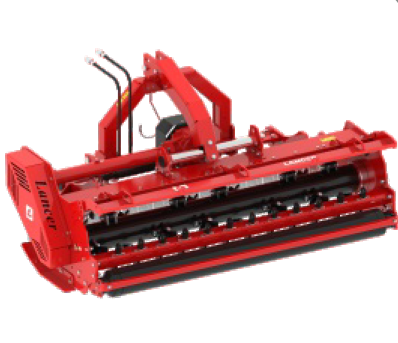

Lancer Jupiter JHH Series – / Mulcher / Shredder / Flail Mower JHH Series is Hydraulic side shift of JH Series which is ideal for shredding thick prunings, tree branches up to 8 CM in diametre. This series is specially designed for wide open fields, as well as brushwood and orchards. It can work with 40 to 80 HP Tractors .
Standard Equipment
- Electronically Balanced Rotor.
- Three Point Hitch Cat 2 with Hydraulic Side Shift
- Gearbox with Free Wheel 540 RPM
- 4 XPB Side Belt Transmission
- Rear Roller Adjustable in 3 Positions.
- Front Protection with Flaps
- Back Door Easy to Open & Close (4 Adjustible Position Locking)
- (4 Adjustible Position Locking)
- Side Skids Adjustable in 2 Positions.
- Counter Knives.
- Advanced Tool Kit.
Technical Chart
Features
On Request
Technical Chart
Model No. |
Working Width MM |
Power Requirement KW HP |
No. of Blade |
No of Hammer |
Weight Kg LBS |
Overall Dimension ( MM ) | Offset MM |
||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
W mm inch |
D mm inch |
H mm inch |
|||||||||||||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|||||||||
JHH 160 | 1600 | 29 – 59 | 40 – 80 | 32 + 16 | 16 | 620 | 1367 | 1840 | 72 | 1230 | 48 | 990 | 39 | 1008 | |
JHH 180 | 1800 | 33 – 59 | 45 – 80 | 32 + 16 | 16 | 640 | 1411 | 2040 | 80 | 1230 | 48 | 990 | 39 | 1108 | |
JHH 200 | 2000 | 37 – 59 | 50 – 80 | 40 + 20 | 20 | 700 | 1544 | 2240 | 88 | 1230 | 48 | 990 | 39 | 1208 | |
JHH 220 | 2200 | 41 – 59 | 55 – 80 | 40 + 20 | 20 | 740 | 1632 | 2440 | 96 | 1230 | 48 | 990 | 39 | 1308 | |
JHH 240 | 2400 | 45 – 59 | 60 – 80 | 48 + 24 | 24 | 780 | 1720 | 2640 | 104 | 1230 | 48 | 990 | 39 | 1408 | |
JHH 260 | 2600 | 48 – 59 | 65 – 80 | 48 + 24 | 24 | 820 | 1808 | 2840 | 112 | 1230 | 48 | 990 | 39 | 1508 | |
JHH 280 | 2800 | 52 – 59 | 70 – 80 | 56 + 28 | 28 | 860 | 1896 | 3040 | 120 | 1230 | 48 | 990 | 39 | 1608 | |
JHH 300 | 3000 | 56 – 59 | 75 – 80 | 56 + 28 | 28 | 870 | 1918 | 3240 | 128 | 1230 | 48 | 990 | 39 | 1708 |
Features
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/Hydraulic-Offset-allows-the-operator-to-control-offset-positioning-without-leaving-the-tractor_s-cab.jpg)

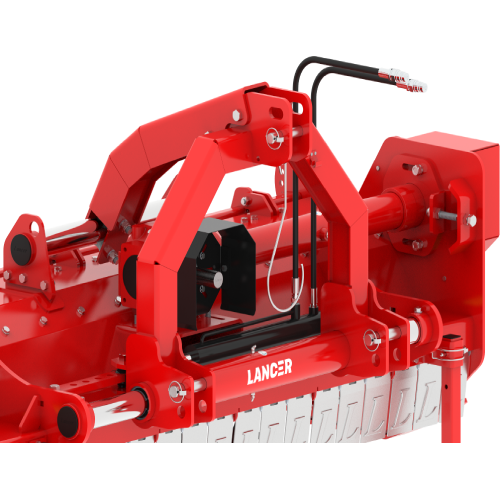

Hydraulic Offset – allows the operator to control offset positioning without leaving the tractor’s cab
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/Height-Adjustable-Rear-Roller.jpg)
Height Adjustable Rear Roller
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/Advanced-Protection-Flap-2.jpg)
Advanced Protection Flap
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/jl-thum3.jpg)
External Belt Tensioning Quick and Simple
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/Easy-Back-Door-Opening.jpg)
Easy Back Door Opening
![](https://www.lanceragrico.com/wp-content/uploads/2023/09/Maximum-Back-Door-Opening.jpg)
Maximum back door opening
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/Adjustable-Side-Skids-1.jpg)
Adjustable Side Skids
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/Easy-Greasing-Points.jpg)
Easy Greasing Points
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/Counter-Knives-1.jpg)
Counter Knives
![](https://www.lanceragrico.com/wp-content/uploads/2022/11/00.jpg)
Mechanical Side Shift
On Request
- Y-Blades or Hammers
- Rakes
- Rear Rubber Flaps
- Mechanical Side Shift
- CE PTO Guard
Crop Residue Managment
![JH Model : 160-180-200-220-240-260-280-300 Require HP : 40 to 80 Require KW: 29 to 59](https://www.lanceragrico.com/wp-content/uploads/2022/11/JH-300x300.png)
- Model : 160-180-200-220-240-260-280-300
- Require HP : 40 to 80
- Require KW: 29 to 59
![JLH - HYDRAULIC SIDE SHIFT Model : 120-140-160-180-200 Require HP : 40 to 80 Require KW: 29 to 59](https://www.lanceragrico.com/wp-content/uploads/2023/04/JLH-300x233.png)
- Model : 120-140-160-180-200
- Require HP : 40 to 80
- Require KW: 29 to 59
![JMH Model : 160-180-200-220-240 Require HP : 40 to 60 Require KW: 29 to 45](https://www.lanceragrico.com/wp-content/uploads/2022/11/JMH-300x300.png)
- Model : 160-180-200-220-240
- Require HP : 40 to 60
- Require KW: 29 to 45
