ROTARY TILLER
RF SERIES


mp2
mp2

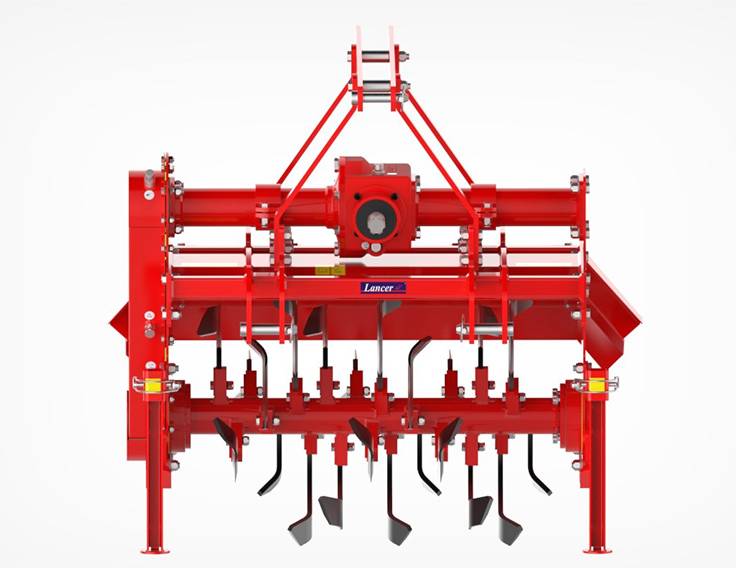

Lancer Rotary Tiller ( Rotavator) Reverse Forward (RF) Series is two in one option, mainly for Sugarcane filed , where one side is inter cultivation and another side is earthing up activity
Standard Equipment
- Single Speed Gear Box ( For 540 RPM Only).
- J Type Blade
- Chain Driven Side Transmission
- Powder Coated
- Three Point Hitch Cat I

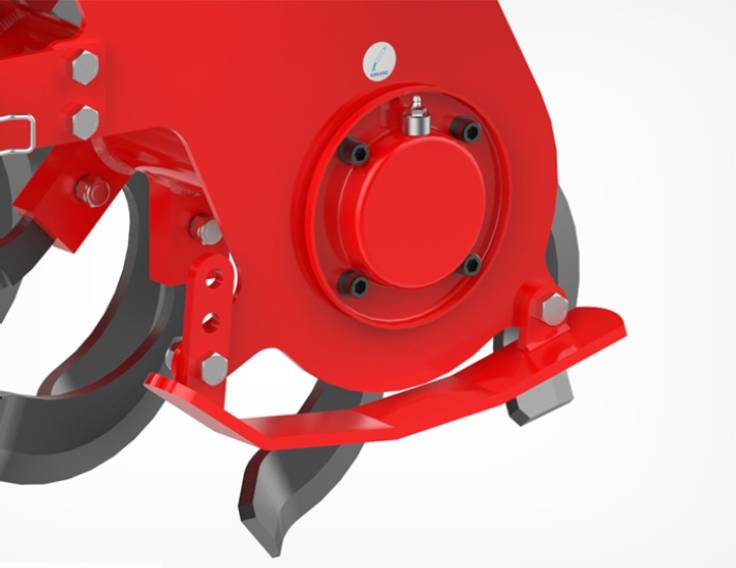

- Adjustable Depth Skid.
- 258 Rotor RPM.
Technical Chart
Features
On Request
Technical Chart
Model No. Unit | Working Width (DIM A) | Overall Width (DIM A) | Overall Length | Overall Length | Power Requirement KW HP |
Working Depth | No. of Blades | Weight KG LBS |
||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|||||
RF 80 | 820 | 1060 | 990 | 970 | 13-19 | 18 – 25 | 150 | 22 | 195 | 430 |
Features

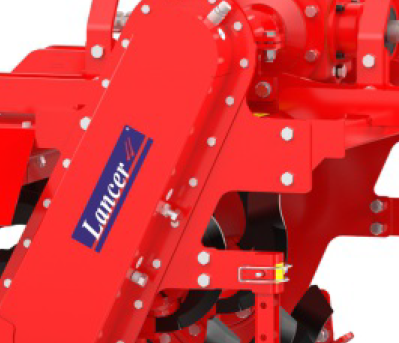

Heavy Chain Driven Side Transmission

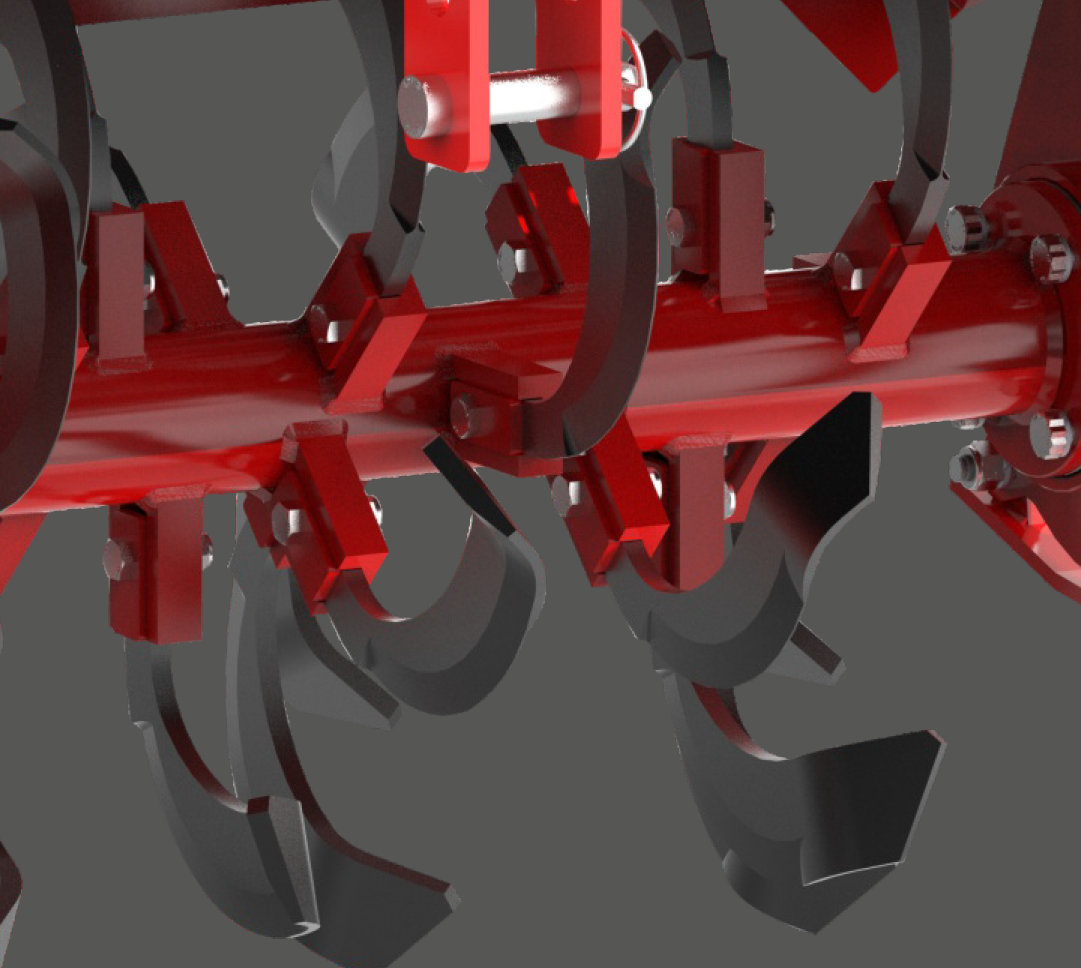

J Type Pocket Blade Holder

Reverse Filled Blades

Two way operable Single Speed heavy Duty Gearbox
On Request
- Shear Bolt / Slip Clutch PTO Shaft
All Rotary Tiller

- Model : 130-180-185-200-225-230-260-290
- Require HP : 60 to 220
- Require KW: 45 to 164

- Model : 105-125-145-165-185-205
- Require HP :24 To 60
- Require KW : 18 to 44

- Model : 105-125-145-165-185-205
- Require HP :18 to 55
- Require KW : 30 to 41

- Model : 125-155-180-200-230-255-280
- Require HP : 30 to 85
- Require KW : 22 to 63

- Model : 200-220-240-260
- Require HP : 35 to 60
- Require KW : 26 to 44

- Model : 155-180-200-230-255-280
- Require HP :40 to 90
- Require KW : 29 to 60

- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75

- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75
