ROTARY TILLER
HD SERIES






HD5
HD4
HD5
HD5
HD5
HD5

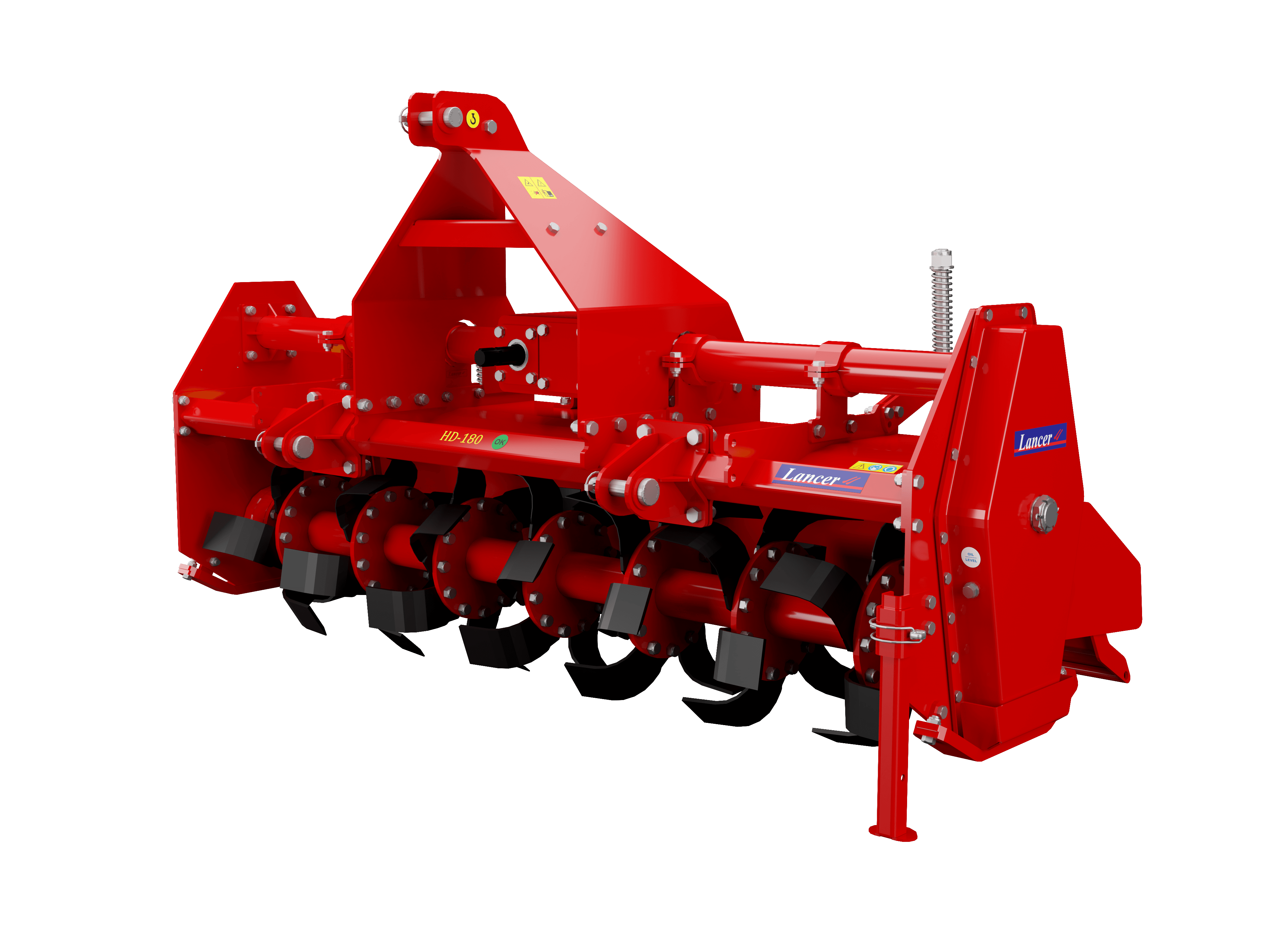

Lancer Rotary Tiller (Rotavator) HD Series is Heavy Duty series and it is designed to
work perfectly in all types of soil and
condition. It is equipped with latest
technology and engineering for better
results. It is available in different variety of
blades such as L , C , JF.
Standard Equipment
- Multi Speed Gear Box.
- L Type Blade, (80 x 7, ⦰ 14.5 x 57)
- Gear Driven Side Transmission
- Powder Coated
- Three Point Hitch Cat II.
- Adjustable Depth Skid with Extra Strip.
- Adjustable Lifting Bracket.
- 2 Springs on Back Guard, And 4 Springs on 200 & Above.
- Advanced Tool Kit .
- 19X21 Spur Gear, 212 Rotor RPM
Technical Chart
Features
On Request
Technical Chart
Model No. Unit | Working Width (DIM A) MM | Overall Width (DIM A) MM | Power Requirement KW HP |
Working Depth | No. of Blades | Weight KG LBS |
||
---|---|---|---|---|---|---|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|||
HD 125 | 1150 | 1407 | 22 – 63 | 30 – 85 | 170 | 30 | 370 | 816 |
HD 145 | 1450 | 1607 | 26 – 63 | 35 – 85 | 170 | 36 | 394 | 868 |
HD 155 | 1550 | 1807 | 29 – 63 | 40 – 85 | 170 | 36/42 | 415 | 915 |
HD 180 | 1750 | 2007 | 33 – 63 | 45 – 85 | 170 | 42/48 | 445 | 981 |
HD 200 | 1950 | 2207 | 37 – 63 | 50 – 85 | 170 | 48/54 | 470 | 1036 |
HD 230 | 2285 | 2542 | 44 – 63 | 60 – 85 | 170 | 54/60 | 495 | 1091 |
HD 255 | 2545 | 2802 | 52 – 63 | 70 – 85 | 170 | 60/66 | 530 | 1168 |
HD 280 | 2795 | 3052 | 55 – 63 | 75 – 85 | 170 | 66/72 | 560 | 1235 |
Features

Heavy Duty Multispeed Gear Drive with Additional Support

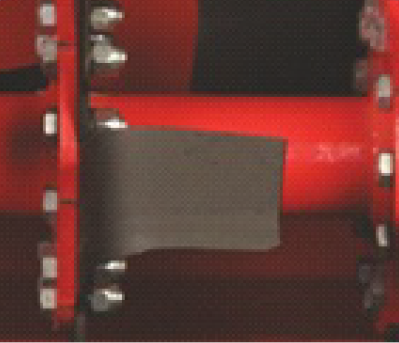

Premium Blade

Side Protection

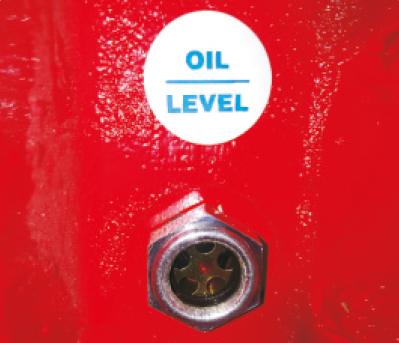

Gear box with oil level Indicator

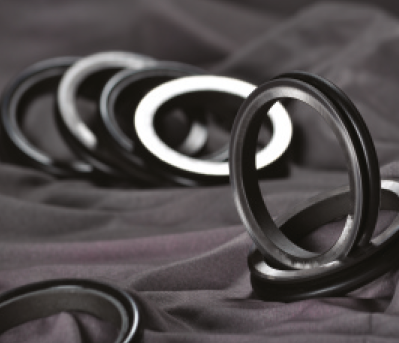

High Quality Mechanical Oil Seal

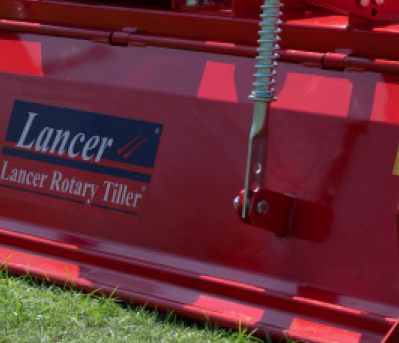

Additional Bend on Trailing Board

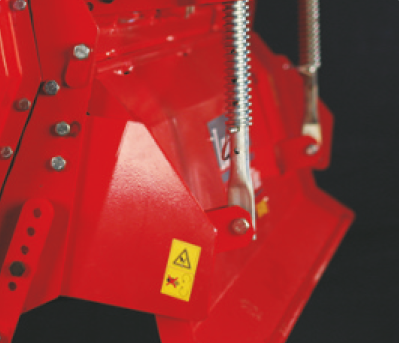

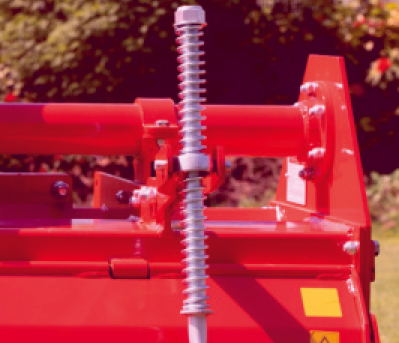

Heavy Duty Spring Assly

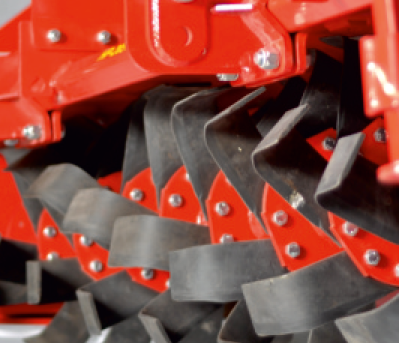

Helical Shape of Rotor Blades

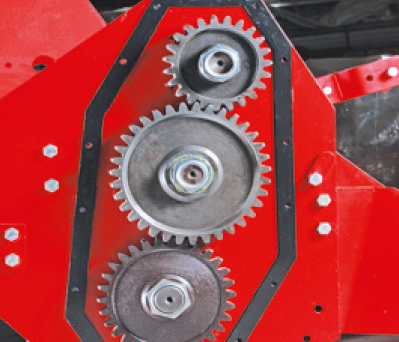

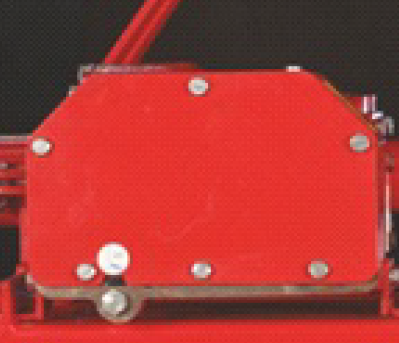

Heavy Duty Side Transmission Gear Drive
On Request
- C /J/ LJF Blade
- Variant also available with more number of blades (70 x 7, Ø14.5 x 46.5 Blades in Each Model)
- Shear Bolt / Slip Clutch PTO Shaft

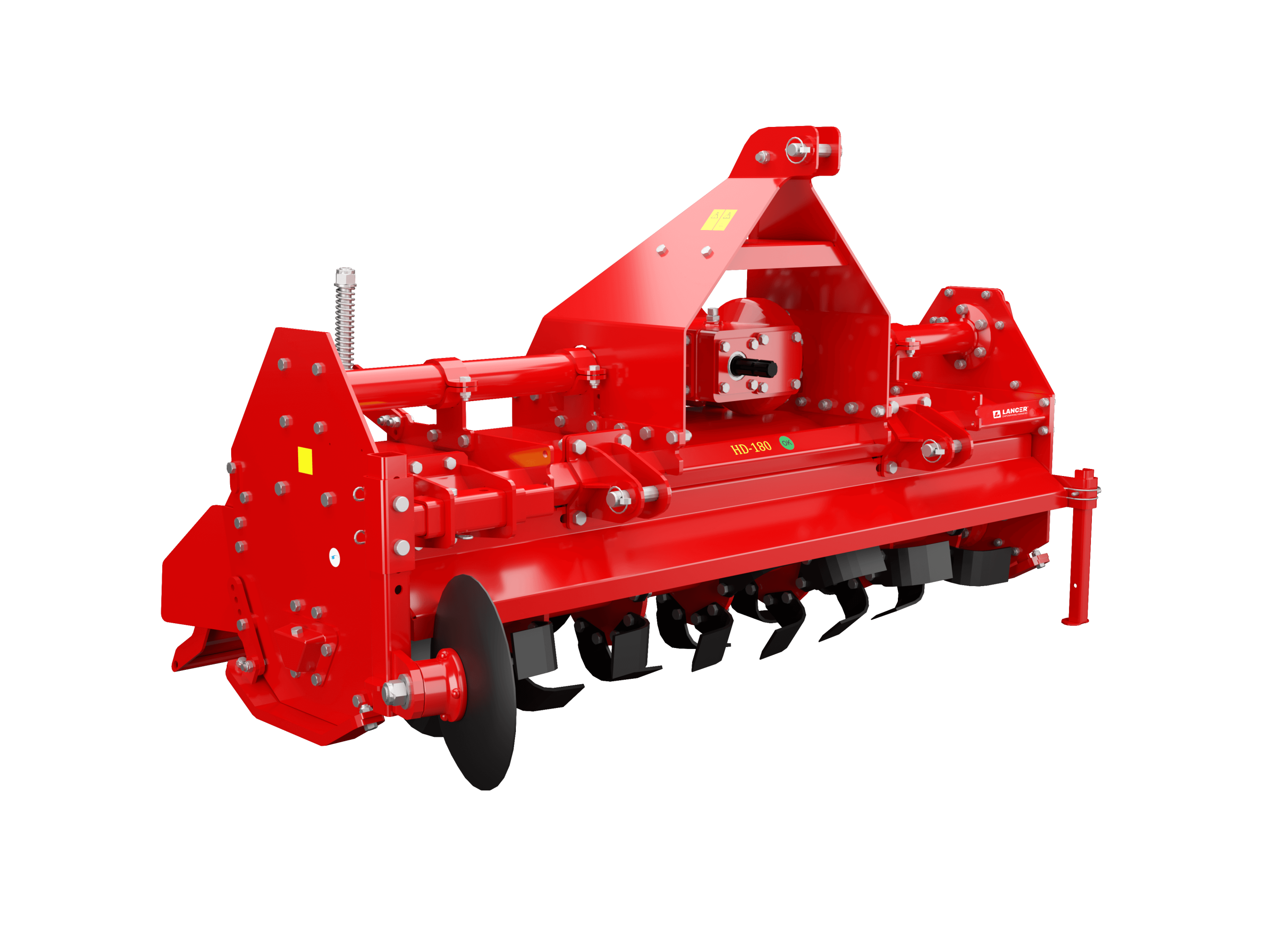

- Side Disc

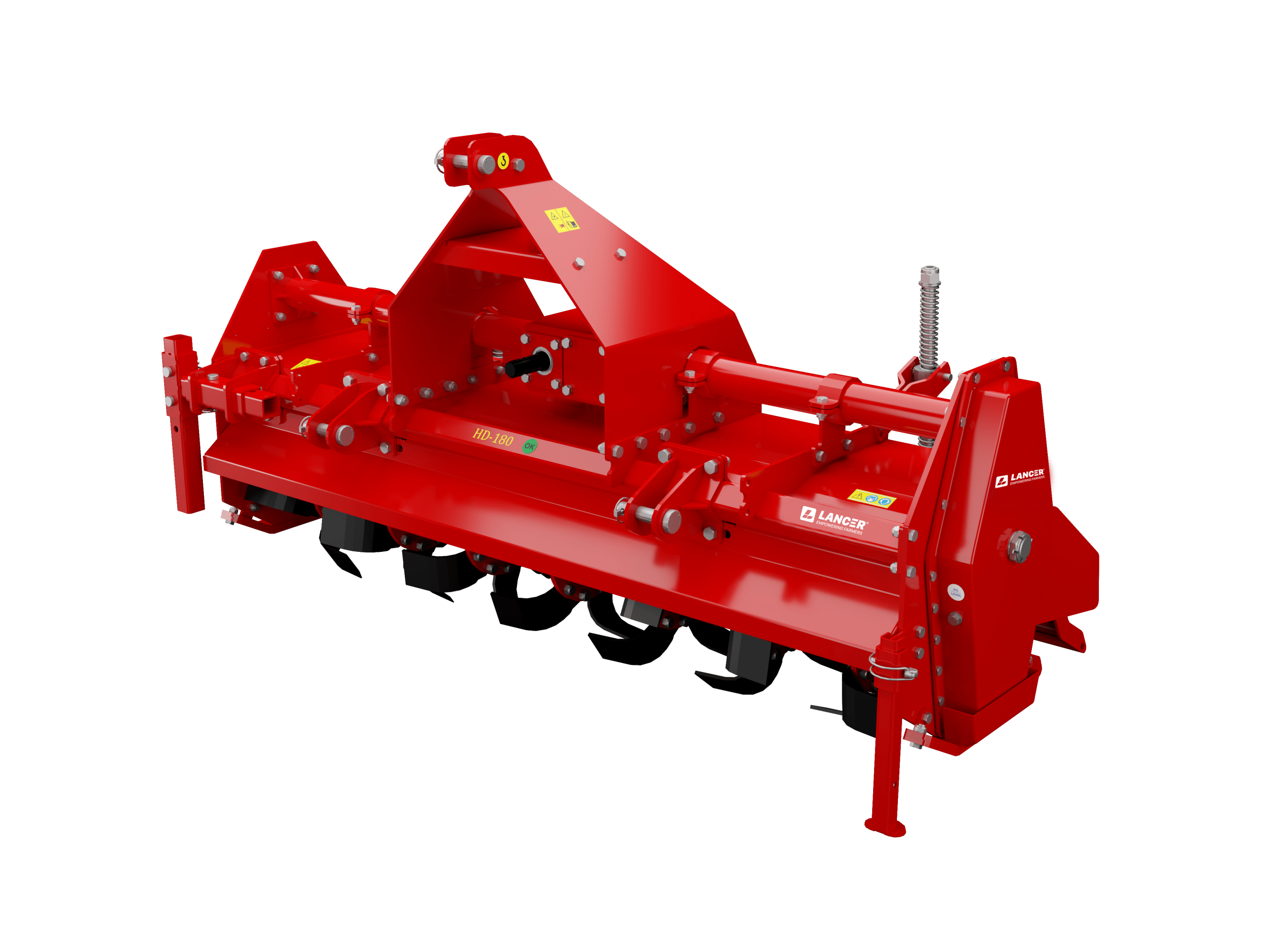

- Front Safety Guard
- Spur Gear Pair According to RPM Chart
All Rotary Tiller

- Model : 80
- Require HP : 18 to 25
- Require KW: 13 to 19

- Model : 105-125-145-165-185-205
- Require HP :24 To 60
- Require KW : 18 to 44

- Model : 105-125-145-165-185-205
- Require HP :18 to 55
- Require KW : 30 to 41

- Model : 200-220-240-260
- Require HP : 35 to 60
- Require KW : 26 to 44

- Model : 155-180-200-230-255-280
- Require HP :40 to 90
- Require KW : 29 to 60

- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75

- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75

- Model : 80-90-100-120
- Require HP : 10 to 25
- Require KW: 7 to 18
