JUPITER
JH SERIES





mp5
mp5
mp5
mp5
mp5

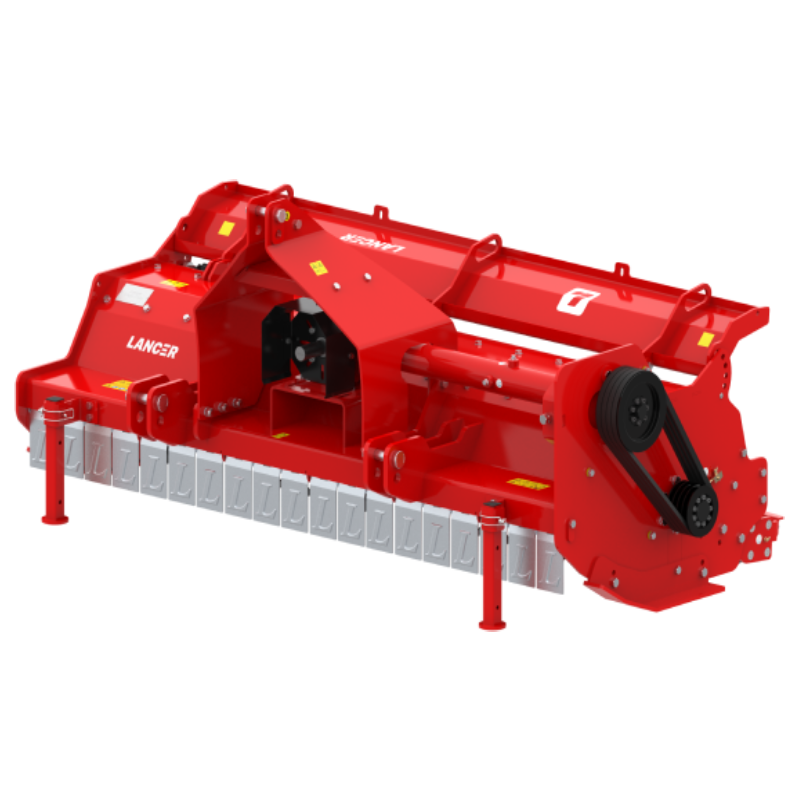

Lancer Jupiter JH Series – Shredder/Mulcher/Flail Mower is a Fixed Centred type shredder for thick branches up to Ø 8 CM. JH SERIES comes in working widths ranging from 1.6 to 3.0 m and is designed to work with tractors with a horsepower of up to 80 HP. This shredder is a multipurpose machine, suitable for shredding, large stems and branch residue, thanks to the robust structure and equipment.
Standard Equipment
- 3 points linkage Cat. 2
- Gearbox with free wheel 540 RPM
- Tool type – Blades or hammers
- Back door easy to open &close
(4 position locking with Plunger) - Rear roller adjustable to 3 positions
- Side skids adjustable to 2 positions
made in Hardox - counter knives screwed in 2 place
- 4 XPB side belt transmission
- External belt adjustment easy and quick
- Electronically balanced rotor
- Front protection with flaps
Technical Chart
Features
On Request
Technical Chart
Model No. | Working Width (MM) | Power Requirement KW HP |
No. of Blade | No of Hammer | Weight Kg LBS |
Overall Dimension ( MM ) | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
W mm inch |
D mm inch |
H mm inch |
|||||||||||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||||||||
JH 160 | 1600 | 29 – 59 | 40 – 80 | 32 + 16 | 16 | 590 | 1301 | 1840 | 72 | 1230 | 48 | 1000 | 39 |
JH 180 | 1800 | 29 – 59 | 45 – 80 | 32 + 16 | 16 | 610 | 1345 | 2040 | 80 | 1230 | 48 | 1000 | 39 |
JH 200 | 2000 | 37 – 59 | 50 – 80 | 40 + 20 | 20 | 670 | 1477 | 2240 | 88 | 1230 | 48 | 1000 | 39 |
JH 220 | 2200 | 41 – 59 | 55 – 80 | 40 + 20 | 20 | 710 | 1566 | 2440 | 96 | 1230 | 48 | 1000 | 39 |
JH 240 | 2400 | 45 – 59 | 60 – 80 | 48 + 24 | 24 | 750 | 1654 | 2640 | 104 | 1230 | 48 | 1000 | 39 |
JH 260 | 2600 | 48 – 59 | 65 – 80 | 48 + 24 | 24 | 790 | 1742 | 2840 | 112 | 1230 | 48 | 1000 | 39 |
JH 280 | 2800 | 52 – 59 | 70 – 80 | 56 + 28 | 28 | 830 | 1830 | 3040 | 120 | 1230 | 48 | 1000 | 39 |
JH 300 | 3000 | 56-59 | 75-8- | 56 + 28 | 28 | 870 | 1920 | 3240 | 128 | 1230 | 48 | 1000 | 39 |
Features

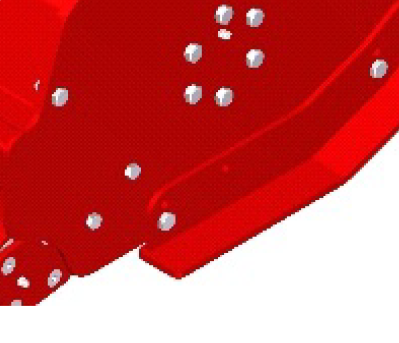

Side Skids

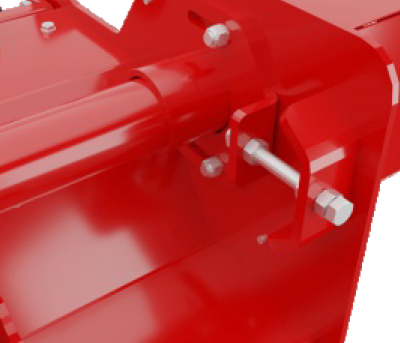

Easy belt tightening

Easy Greasing Point

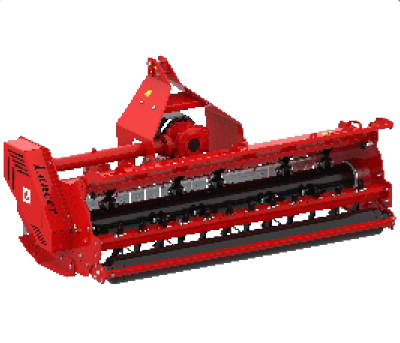

Maximum back door opening

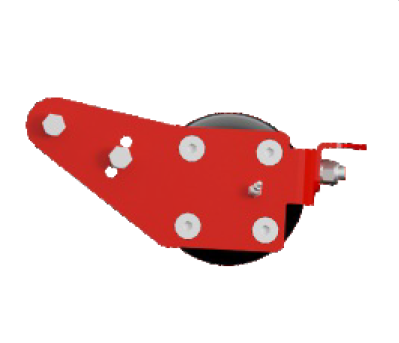

Rear Roller can adjust 3 Position

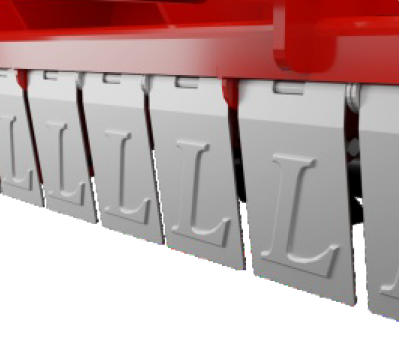

Advanced Protection Flap

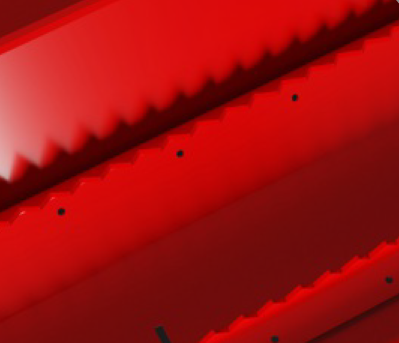

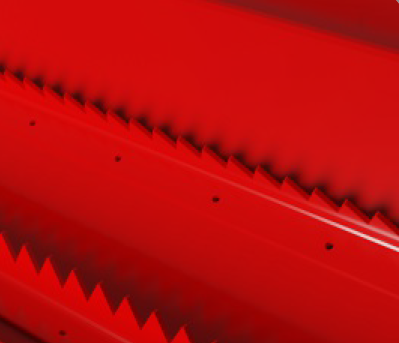

Counter knives 3 CK-3

Counter knives 2 CK-2
On Request
- Blades
- Wear-resistant counter knives
- Tool type – Blades or hammers
