SUBSOILER/ SOIL RENOVATOR
KENCHUA
KM SERIES

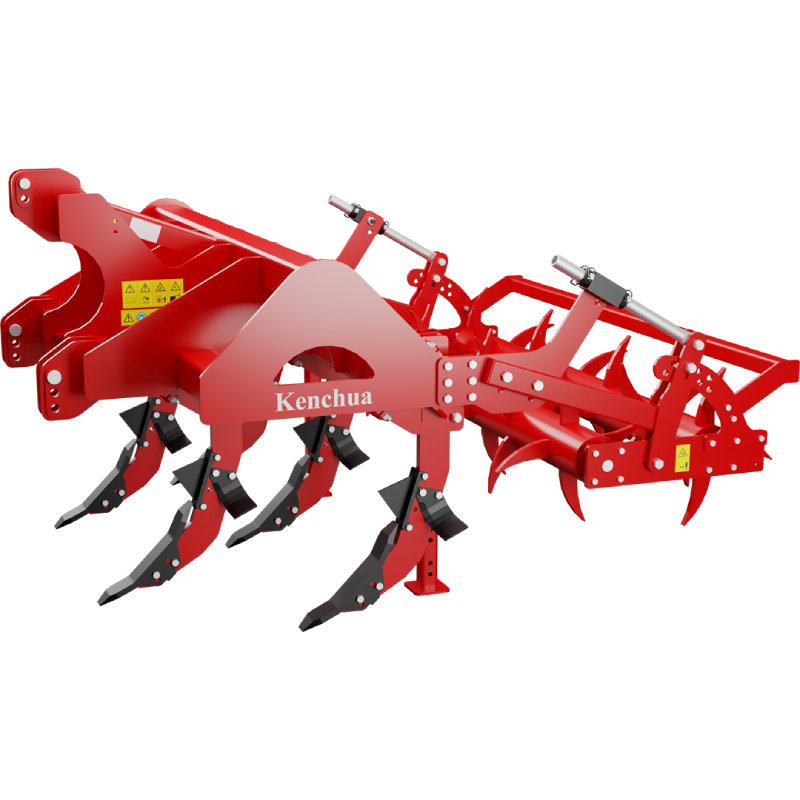

Lancer Kenchua KM Series Sub-soiler has
range of 130 CM to 290CM, Which can be
coupled with 55 to 160 HP tractors. It is
mainly Made from Virgin Material with
rigid structure, High Strength material in
Shank and Point with perfect finish to
reduce load on tractor.
Standard Equipment
- Shank thickness 30 mm
- Shank width adjustable
- Reversible quick-release blade
- Shear Bolt safety Mechanism
- Advanced Tool Kit.
Technical Chart
Features
On Request
Technical Chart
| Model No. | Unit | KM 130 | KM 180 | KM 185 | KM 200 | KM 225 | KM 230 | KM 260 | KM 290 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Working width |  |
mm | 1300 | 1850 | 1850 | 2000 | 2300 | 2300 | 2600 | 2900 |
| Number of shanks |  |
No | 3 | 4 | 5 | 5 | 5 | 7 | 7 | 7 |
| Center Distance between two shanks |  |
mm | 345-545 | 465-545 | 325-410 | 345-445 | 465-521 | 310-346 | 345-396 | 375-445 |
| Working depth |  |
mm | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
| Overall width Overall Height |
 |
mm mm |
1350 1410 |
1900 1410 |
1900 1410 |
2050 1410 |
2350 1410 |
2350 1410 |
2650 1410 |
2950 1410 |
| Weight Without Roller |  |
Kg Lbs |
575 1268 |
680 1499 |
730 1609 |
760 1676 |
800 1764 |
930 2050 |
1010 2227 |
1040 2293 |
| Weight With Roller | |
Kg Lbs |
765 1687 |
940 2072 |
1005 2216 |
1040 2293 |
1100 2425 |
1235 2723 |
1340 2954 |
1390 3064 |
| Tractor power |  |
HP KW |
55 – 110 41 – 82 |
70 – 110 52 – 82 |
75 – 130 56 – 97 |
90 – 130 67 – 97 |
100 – 130 75 – 97 |
100 – 160 75 – 119 |
120 – 160 89 – 119 |
120 – 160 89 – 119 |
Features
Clod –Breaking Blade

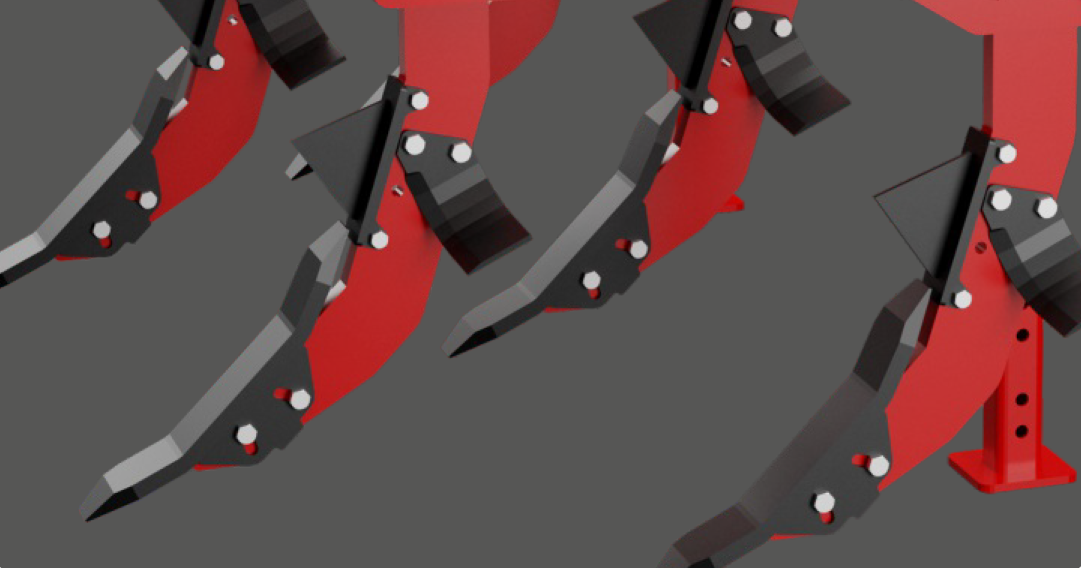

Wearing Point
Shear Bolt Safety Mechanism
Side Guard Plates

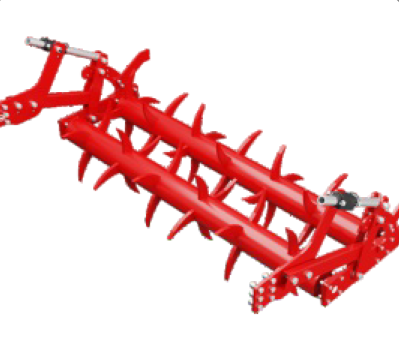

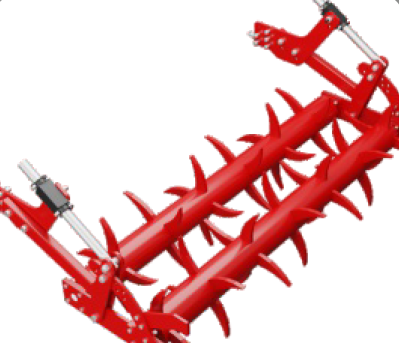

Optional Roller
Wear resistant shank protection

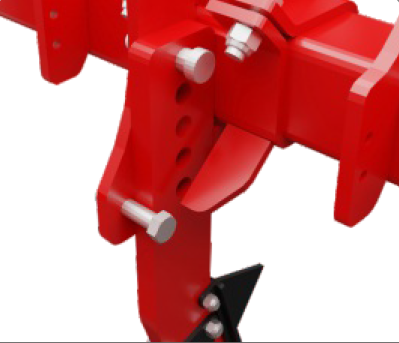

Easy Shank Width Adjustment

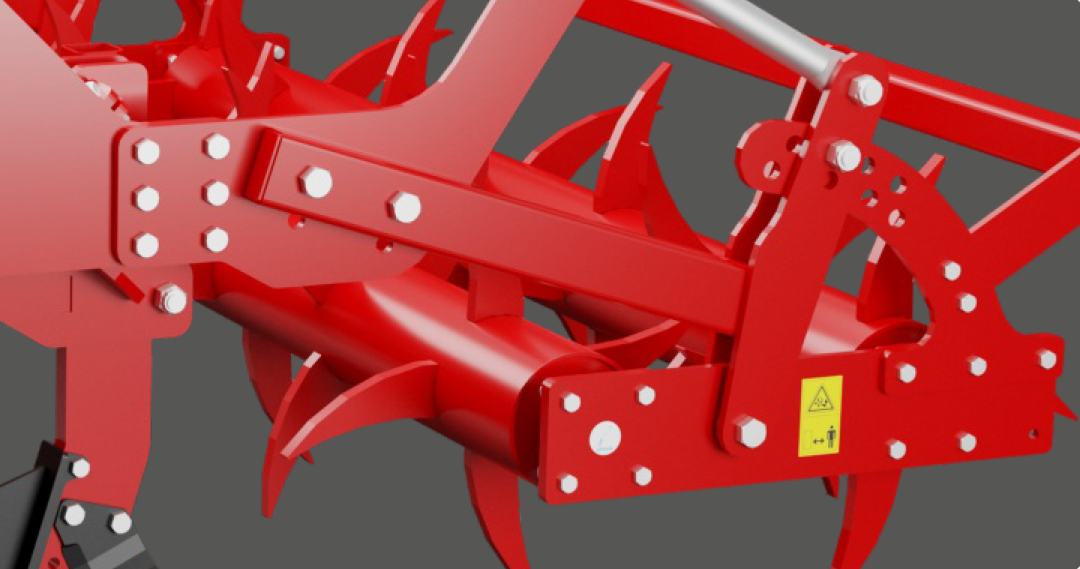

Rear Roller Height Adjustment
On Request
- Wear resistant shank protection
- Clod-breaking blades
- Mechanical roller
- Wear point blade
- Height adjustable Shank
Subsoiler/ Soil Renovator Kenchua
- Model : KL 3 - KL 5
- Require HP : 70 to 110
- Require KW: 52 to 82
- Model : 130-180-185-200-225-230-260-290
- Require HP : 60 to 220
- Require KW: 45 to 164
- Model : 130-180-185-200-225-230-260-290
- Require HP : 60 to 220
- Require KW : 48 to 186
- Model : 250-295-300-350-395-400
- Require HP : 150 to 400
- Require KW: 112 to 299
