SUBSOILER/ SOIL RENOVATOR
KENCHUA
KH SERIES

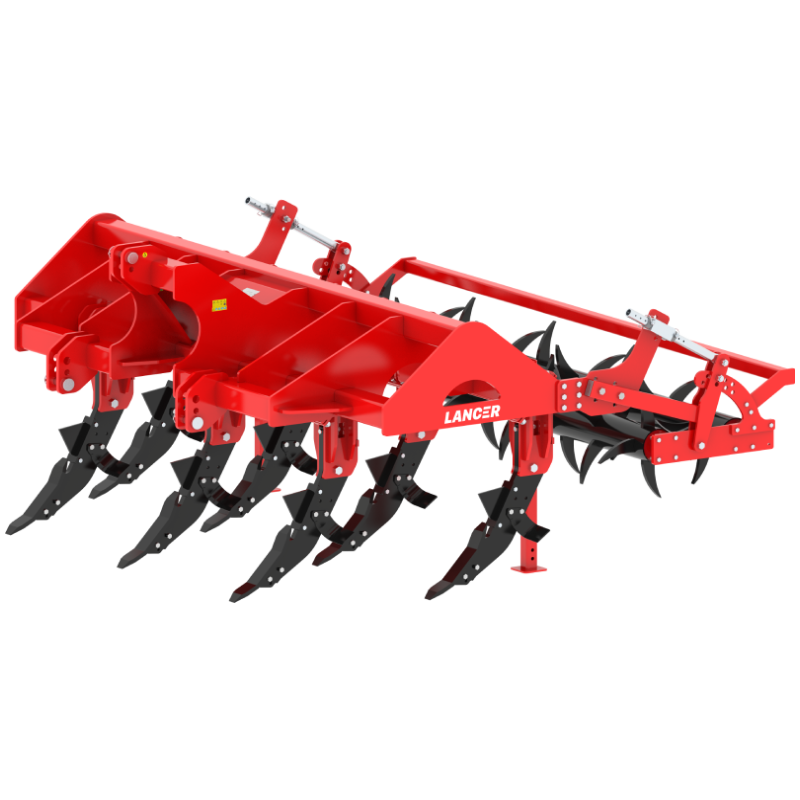

Lancer Kenchua KH Series Sub-soiler has
range of 130 CM to 290CM, Which can be
coupled with 65 to 250 HP tractors. It is
mainly Made from Virgin Material with
rigid structure, High Strength material in
Shank and Point with perfect finish to
reduce load on tractor.
Standard Equipment
- Shank thickness 30 mm
- Adjustable Centre Distance Between
Shanks - Reversible quick-release blade
- Shear Bolt Safety Mechanism
- Advanced Tool Kit.
Technical Chart
Features
On Request
Technical Chart
| Model No. | Unit | KH 130 | KH 180 | KH 185 | KH 200 | KH 225 | KH 230 | KH 260 | KH 290 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Working width |  |
mm | 1300 | 1850 | 1850 | 2000 | 2300 | 2300 | 2600 | 2900 |
| Number of shanks |  |
No | 3 | 4 | 5 | 5 | 5 | 7 | 7 | 7 |
| Center Distance between two shanks |  |
mm | 345-545 | 465-545 | 325-410 | 345-445 | 465-521 | 310-346 | 345-396 | 375-445 |
| Working depth |  |
mm | 550 | 550 | 550 | 550 | 550 | 550 | 550 | 550 |
| Overall width Overall Height |
 |
mm mm |
1350 1510 |
1900 1510 |
1900 1510 |
2050 1510 |
2350 1510 |
2350 1510 |
2650 1510 |
2950 1510 |
Overall Length without Roller Overall Length with Roller |
 |
mm mm |
1500 2640 |
1500 2640 |
1500 2640 |
1500 2640 |
1500 2640 |
1500 2640 |
1500 2640 |
1500 2640 |
| Weight Without Roller |  |
Kg Lbs |
630 1389 |
800 1764 |
850 1874 |
885 1951 |
930 2050 |
1070 2359 |
1175 2590 |
1210 2668 |
| Weight With Roller | |
Kg Lbs |
855 1885 |
1055 2326 |
1120 2469 |
1165 2568 |
1230 2712 |
1380 3042 |
1500 3307 |
1560 3439 |
| Tractor power |  |
HP KW |
65 – 130 48 – 97 |
80 – 130 60 – 97 |
85 -130 63 – 97 |
100 – 160 75 – 119 |
120 – 180 89 – 134 |
150 – 200 112 – 149 |
160 – 200 119 – 149 |
190 – 250 141 – 186 |
Features

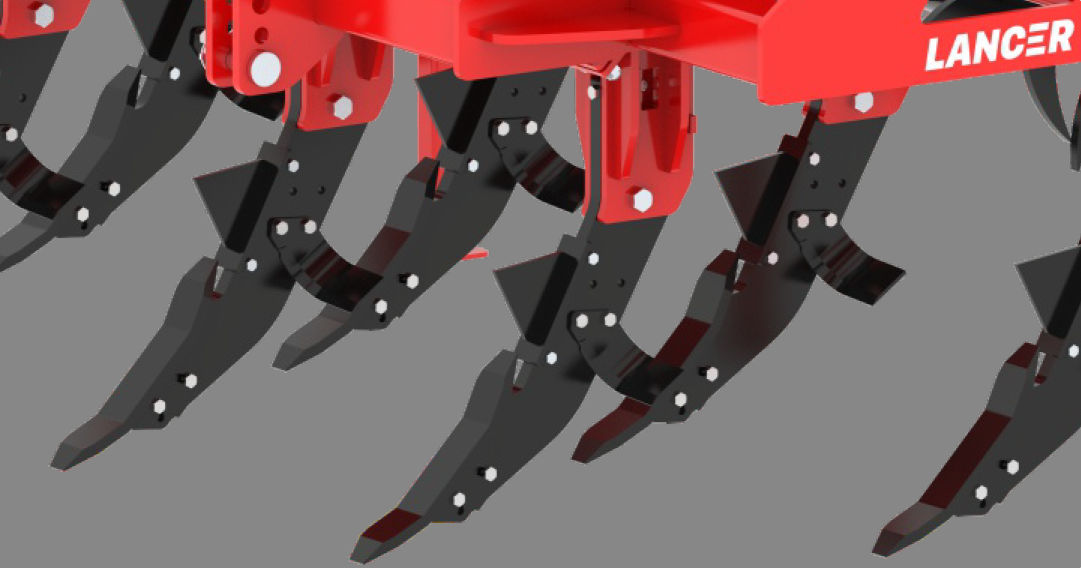

Clod –Breaking Blade
Roller Wearing Point
Easy Shank Width Adjustment

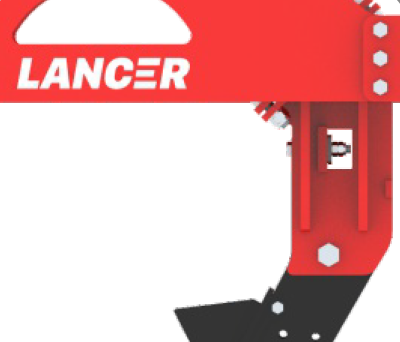

Shear Bolt Safety Mechanism
Optional Roller
Wear resistant shank protection

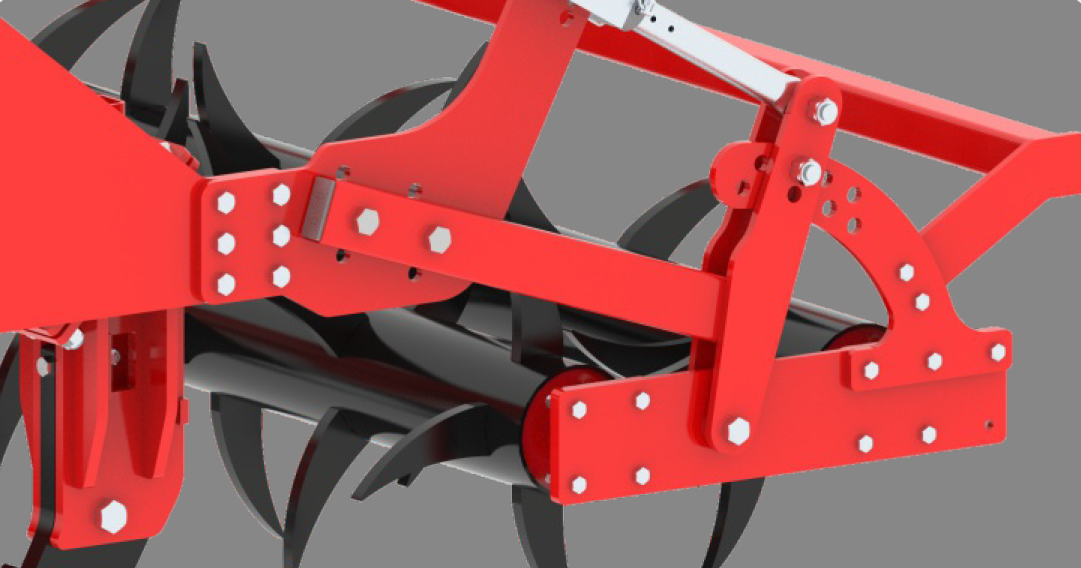

Rear Roller Height Adjustment
Side Guard Plates
On Request
- Wear resistant shank protection
- Clod-breaking blades
- Side Guard Plates
- Mechanical roller
- Hydraulic Roller
Subsoiler/ Soil Renovator Kenchua
- Model : KL 3 - KL 5
- Require HP : 70 to 110
- Require KW: 52 to 82
- Model : 130-180-185-200-225-230-260-290
- Require HP : 60 to 220
- Require KW: 45 to 164
- Model : 130-180-185-200-225-230-260-290
- Require HP : 60 to 220
- Require KW : 48 to 186
- Model : 250-295-300-350-395-400
- Require HP : 150 to 400
- Require KW: 112 to 299
- Model : 130-180-185-200-225-230
- Require HP : 45 to 90
- Require KW : 33 to 67
