ROTARY TILLER
MP SERIES
Lancer Rotary Tiller (Rotavator) MP Series is a compact and economical option for a small or hobby farmers. Also it is used in inter-row cultivation in many areas. Many farmers also use this machine in small paddy fields i.e. wet cultivation.
Standard Equipment
- Single Speed Gear Box ( For 540 RPM Only ).
- L Type Blade, (70 x 7, ⦰ 12.5 x 46.5 )
- Gear Driven Side Transmission
- Powder Coated
- Three Point Hitch Cat I.
- Adjustable Depth Skid with Extra Strip.
- Adjustable Lifting Bracket.
- 216 Rotor RPM.
- Open Rotor
Technical Chart
Features
On Request
Technical Chart
| Model | Working Width MM |
Power Requirement KW HP |
THREE POINT HITCH |
Working Depth (mm) |
No. of Blades |
Weight KG LBS |
Overall Width x Height x Length |
||
|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
|||
| MP 80 | 800 | 7 – 18 | 10 – 25 | Cat-I | 125* | 18 | 157 | 346 | 970 x 870 x 640 |
| MP 90 | 900 | 8 – 18 | 12 -25 | Cat-I | 125* | 24 | 162 | 357 | 1070 x 870 x 640 |
| MP 100 | 1000 | 11 – 18 | 15 – 25 | Cat-I | 125* | 20/24 | 173 | 381 | 1170 x 870 x 640 |
| MP 120 | 1200 | 14 – 18 | 20 -25 | Cat-I | 125*/td> | 24/30 | 183 | 403 | 1370 x 870 x 640 |
Features

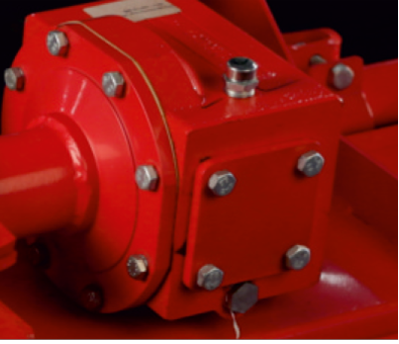

Heavy Duty Single Speed Gear Drive
Heavy Duty Side Transmission Gear Drive

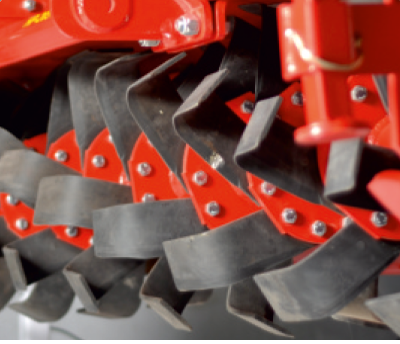

Helical Shape of Rotor Blades
On Request
- C Type Blade, (70 x 7, ⦰ 12.5 x 46.5 )
- Shear Bolt / Slip Clutch PTO Shaft
- Close Rotor
- CE PTO Guard
All Rotary Tiller
- Model : 80
- Require HP : 18 to 25
- Require KW: 13 to 19
- Model : 105-125-145-165-185-205
- Require HP :24 To 60
- Require KW : 18 to 44
- Model : 105-125-145-165-185-205
- Require HP :18 to 55
- Require KW : 30 to 41
- Model : 125-155-180-200-230-255-280
- Require HP : 30 to 85
- Require KW : 22 to 63
- Model : 200-220-240-260
- Require HP : 35 to 60
- Require KW : 26 to 44
- Model : 155-180-200-230-255-280
- Require HP :40 to 90
- Require KW : 29 to 60
- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75
- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75
- Model : 155-180-200-230
- Require HP : 45 to 85
- Require KW : 33 to 63
