ROTARY TILLER
MAXIMO SERIES


mp5
mp5

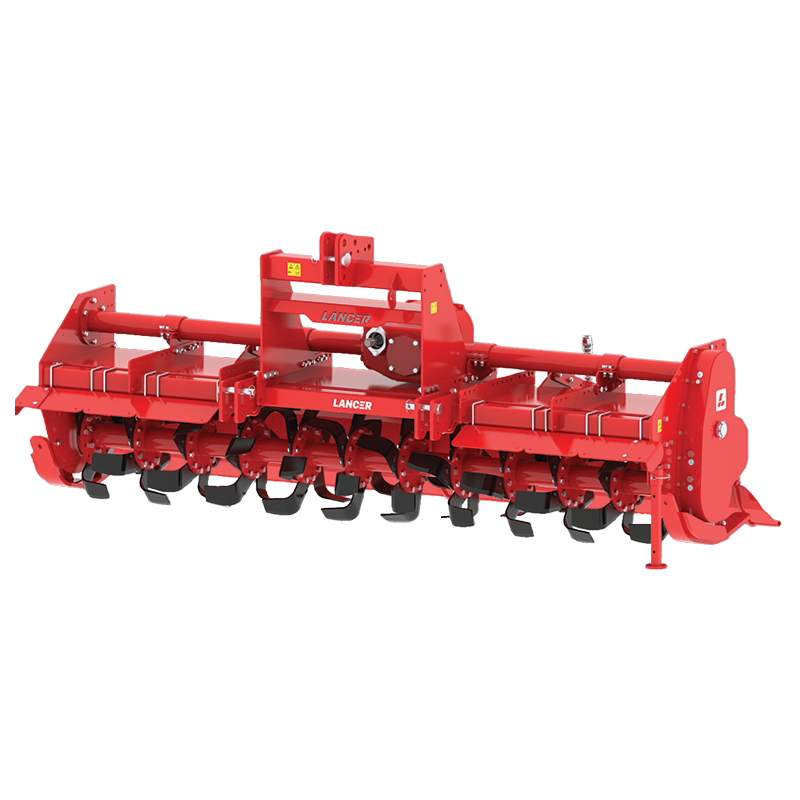

Lancer Rotary Tiller (Rotavator) MAXIMO
BOLD Series is Extra Large Range with
heavy duty gearbox. This series is a heavy
duty machine and has greater working
width, so it is suitable for large scale
farmers. Rigid structure and better
support helps in deep tillage, as
compared to other rotary tillers
Standard Equipment
- Multi Speed Gear Box.
- L Type Blade, (80 x 8, ⦰ 14.5 x 57)
- Gear Driven Side Transmission
- Powder Coated
- Three Point Hitch Cat II & III .
- Adjustable Depth Skid.
- Adjustable Lifting Bracket
- Advanced Tool Kit
- 21X19 Spur Gear, 221 Rotor RPM
Technical Chart
Features
On Request
Technical Chart
Model No. Unit | Working Width (DIM A) MM | Overall Width (DIM A) MM | Power Requirement KW HP |
Working Depth | No. of Blades | Weight KG LBS |
||
---|---|---|---|---|---|---|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|||
MB 205 | 2100 | 2230 | 44 – 97 | 60 – 130 | 250 | 48 | 720 | 1588 |
MB 230 | 2350 | 2480 | 52 – 97 | 70 – 130 | 250 | 54 | 780 | 1720 |
MB 250 | 2600 | 2730 | 60 – 97 | 80 – 130 | 250 | 60 | 830 | 1830 |
MB 280 | 2850 | 2980 | 67 – 97 | 90 – 130 | 250 | 66 | 900 | 1985 |
MB 300 | 3100 | 3230 | 74 – 97 | 100 – 130 | 250 | 72 | 920 | 2029 |
Features

Heavy Duty Gear box , Support up to 130 HP Tractor

Premium Blade

Side Protection

Heavy Duty Side Transmission Gear Drive with Extra Width

Mechanical Oil Seal in Rotor Hub

Extra Rigid Backguard with Extension

Heavy Duty Front Support with Extra Support

Front Safety Flap

Heavy Duty Hull, Square Pipe and Side Plate

Helical Shape of Rotor Blades
On Request
- C / LJF Blade
- Shear Bolt / Slip Clutch PTO Shaft
- Spur Gear Pair According to RPM Chart
All Rotary Tiller

- Model : 80
- Require HP : 18 to 25
- Require KW: 13 to 19

- Model : 105-125-145-165-185-205
- Require HP :24 To 60
- Require KW : 18 to 44

- Model : 105-125-145-165-185-205
- Require HP :18 to 55
- Require KW : 30 to 41

- Model : 125-155-180-200-230-255-280
- Require HP : 30 to 85
- Require KW : 22 to 63

- Model : 200-220-240-260
- Require HP : 35 to 60
- Require KW : 26 to 44

- Model : 155-180-200-230-255-280
- Require HP :40 to 90
- Require KW : 29 to 60

- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75

- Model : 80-90-100-120
- Require HP : 10 to 25
- Require KW: 7 to 18
