ROTARY TILLER
HP SERIES
![](http://www.lanceragrico.com/wp-content/uploads/2022/10/hp.png)
![](http://www.lanceragrico.com/wp-content/uploads/2022/11/hp4.jpg)
![](http://www.lanceragrico.com/wp-content/uploads/2022/11/hp3.png)
![](http://www.lanceragrico.com/wp-content/uploads/2022/11/hp2.png)
mp2
mp2
mp2
mp2
![mp2](http://www.lanceragrico.com/wp-content/uploads/2022/10/hp.png)
![mp2](http://www.lanceragrico.com/wp-content/uploads/2022/11/hp4.jpg)
![mp2](http://www.lanceragrico.com/wp-content/uploads/2022/11/hp3.png)
![mp2](http://www.lanceragrico.com/wp-content/uploads/2022/11/hp2.png)

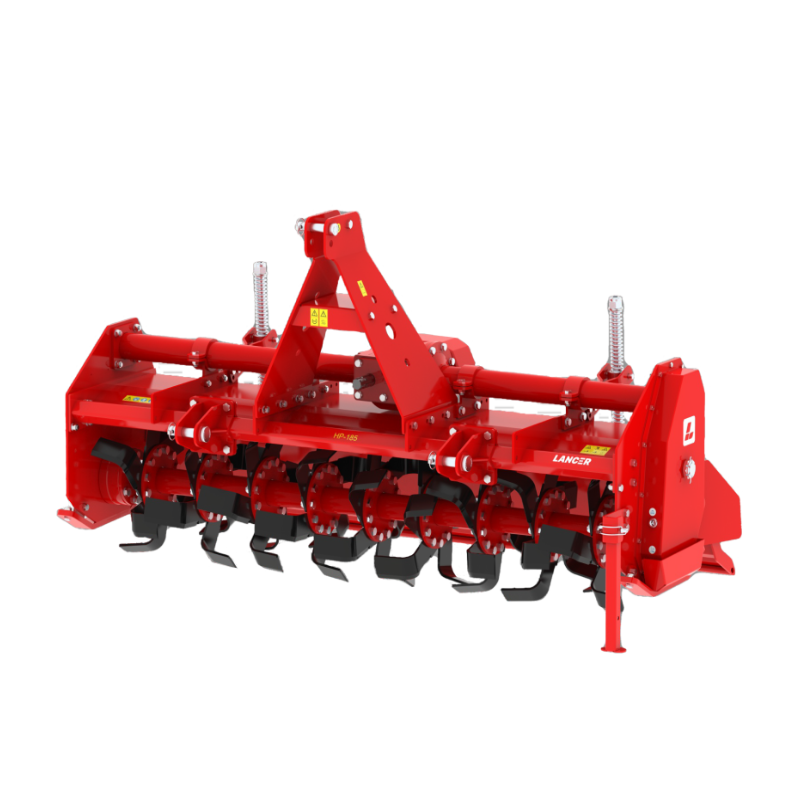

Lancer Rotary Tiller (Rotavator) HP Series is economical and low maintenance
series. It is light weight and has rigid
structure for better performance in field
and less load on tractor. It is designed to
work perfectly with mid range of 18 to 60
HP tractors.
Standard Equipment
- Multi Speed Gear Box
- L Type Blade, (70 x 7 ⦰ 14.5 x 46.5 )
- Gear Driven Side Transmission
- Powder Coated
- Three Point Hitch Cat II
- Adjustable Depth Skid with Extra Strip
- Adjustable Lifting Bracket
- 2 Springs on Back Guard
- Advanced Tool Kit.
- 17 x 19 Spur Gear, 202 Rotor RPM
- Open Rotor
Technical Chart
Features
On Request
Technical Chart
Model | Working Width MM |
Power Requirement KW HP |
THREE POINT HITCH |
Working Depth (mm) |
No. of Blades |
Weight KG LBS |
Overall Width x Height x Length |
||
---|---|---|---|---|---|---|---|---|---|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() ![]() |
|||
HP 105 | 1040 | 13 – 44 | 18 – 60 | Cat-II | 160 | 24/30 | 295 | 650 | 1208 x 1100 x 810 |
HP 125 | 1240 | 22 – 44 | 30 – 60 | Cat-II | 160 | 36 | 318 | 701 | 1408 x 1100 x 810 |
HP 145 | 1440 | 26 – 44 | 35 – 60 | Cat-II | 160 | 42 | 355 | 783 | 1608 x 1100 x 810 |
HP 165 | 1640 | 30 – 44 | 40 – 60 | Cat-II | 160 | 48 | 380 | 838 | 1808 x 1100 x 810 |
HP 185 | 1840 | 33 – 44 | 45 – 60 | Cat-II | 160 | 54 | 420 | 926 | 2008 x 1100 x 810 |
HP 205 | 2040 | 37 – 44 | 50 – 60 | Cat-II | 160 | 60 | 460 | 1014 | 2208 x 1100 x 810 |
Features
![](https://www.lanceragrico.com/wp-content/uploads/2022/10/Heavy-Duty-Multispeed-Gear-Drive.jpg)
Heavy Duty Multi Speed Gear Drive
![](https://www.lanceragrico.com/wp-content/uploads/2022/10/Heavy-Duty-Side-Transmission-Gear-Drive.jpg)

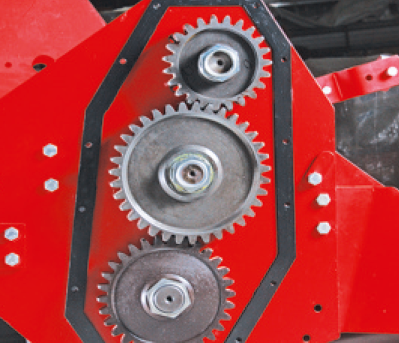

Heavy Duty Side Transmission Gear Drive
![](https://www.lanceragrico.com/wp-content/uploads/2022/10/Heavy-Duty-Damper-Springs-For-Better-Leveling.jpg)

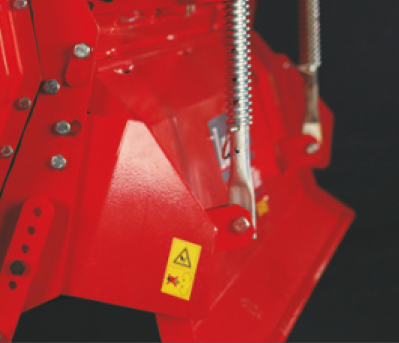

Heavy Duty Damper Springs For Better Leveling
![](https://www.lanceragrico.com/wp-content/uploads/2023/09/h-thum3.jpg)

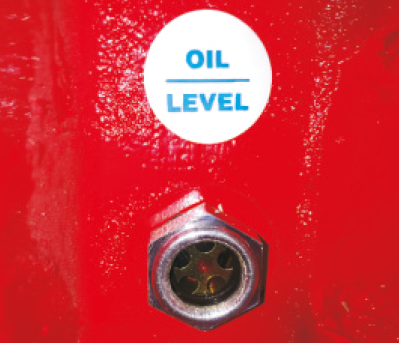

High Quality Mechanical Oil Seal
![](https://www.lanceragrico.com/wp-content/uploads/2022/10/Helical-Shape-for-Rotor-Blades.jpg)

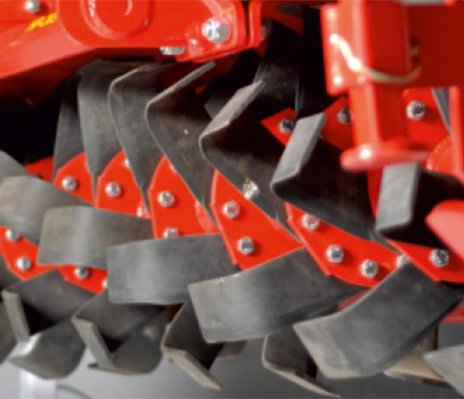

Helical Shape of Rotor Blades
![](https://www.lanceragrico.com/wp-content/uploads/2022/10/Side-Protection.jpg)
Side Protection
On Request
- C Type Blade, (70 x 7, ⦰ 14.5 x 46.5 )
- Shear Bolt / Slip Clutch PTO Shaft
- Side Disc
- Front Safety Guard

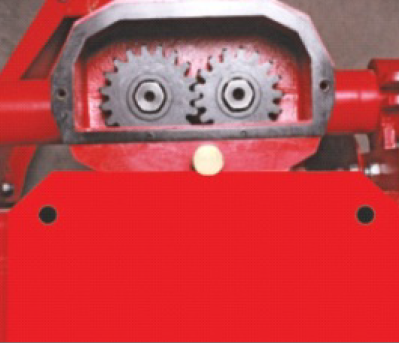

- Spur Gear Pair According to RPM Chart
- Single speed gear box of 540 rpm only
- Close Rotor
- CE PTO Guard
All Rotary Tiller
![RF Model : 80 Require HP : 18 to 25 Require KW: 13 to 19](https://www.lanceragrico.com/wp-content/uploads/2022/10/rf-300x300.png)
- Model : 80
- Require HP : 18 to 25
- Require KW: 13 to 19
![HPModel : 105-125-145-165-185-205Require HP :24 To 60Require KW : 18 to 44](https://www.lanceragrico.com/wp-content/uploads/2022/10/hp-300x300.png)
- Model : 105-125-145-165-185-205
- Require HP :24 To 60
- Require KW : 18 to 44
![HLModel : 105-125-145-165-185-205Require HP :18 to 55Require KW : 30 to 41](https://www.lanceragrico.com/wp-content/uploads/2022/10/hl-300x300.png)
- Model : 105-125-145-165-185-205
- Require HP :18 to 55
- Require KW : 30 to 41
![HDModel : 125-155-180-200-230-255-280 Require HP : 30 to 85Require KW : 22 to 63](https://www.lanceragrico.com/wp-content/uploads/2022/10/hd-300x300.png)
- Model : 125-155-180-200-230-255-280
- Require HP : 30 to 85
- Require KW : 22 to 63
![AkshatModel : 200-220-240-260Require HP : 35 to 60Require KW : 26 to 44](https://www.lanceragrico.com/wp-content/uploads/2022/10/11-300x300.png)
- Model : 200-220-240-260
- Require HP : 35 to 60
- Require KW : 26 to 44
![MasterModel : 155-180-200-230-255-280Require HP :40 to 90Require KW : 29 to 60](https://www.lanceragrico.com/wp-content/uploads/2022/10/master-300x300.png)
- Model : 155-180-200-230-255-280
- Require HP :40 to 90
- Require KW : 29 to 60
![MaximoModel : -155-180-205-230Require HP :45 To 100Require KW : 34 to 75](https://www.lanceragrico.com/wp-content/uploads/2022/10/maximo-300x300.png)
- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75
![Maximo BoldModel : -155-180-205-230Require HP :45 To 100Require KW : 34 to 75](https://www.lanceragrico.com/wp-content/uploads/2022/10/maximo-bold-300x300.png)
- Model : -155-180-205-230
- Require HP :45 To 100
- Require KW : 34 to 75
![HSModel : 155-180-200-230Require HP : 45 to 85Require KW : 33 to 63](https://www.lanceragrico.com/wp-content/uploads/2023/09/hs-img-300x300.png)
- Model : 155-180-200-230
- Require HP : 45 to 85
- Require KW : 33 to 63
