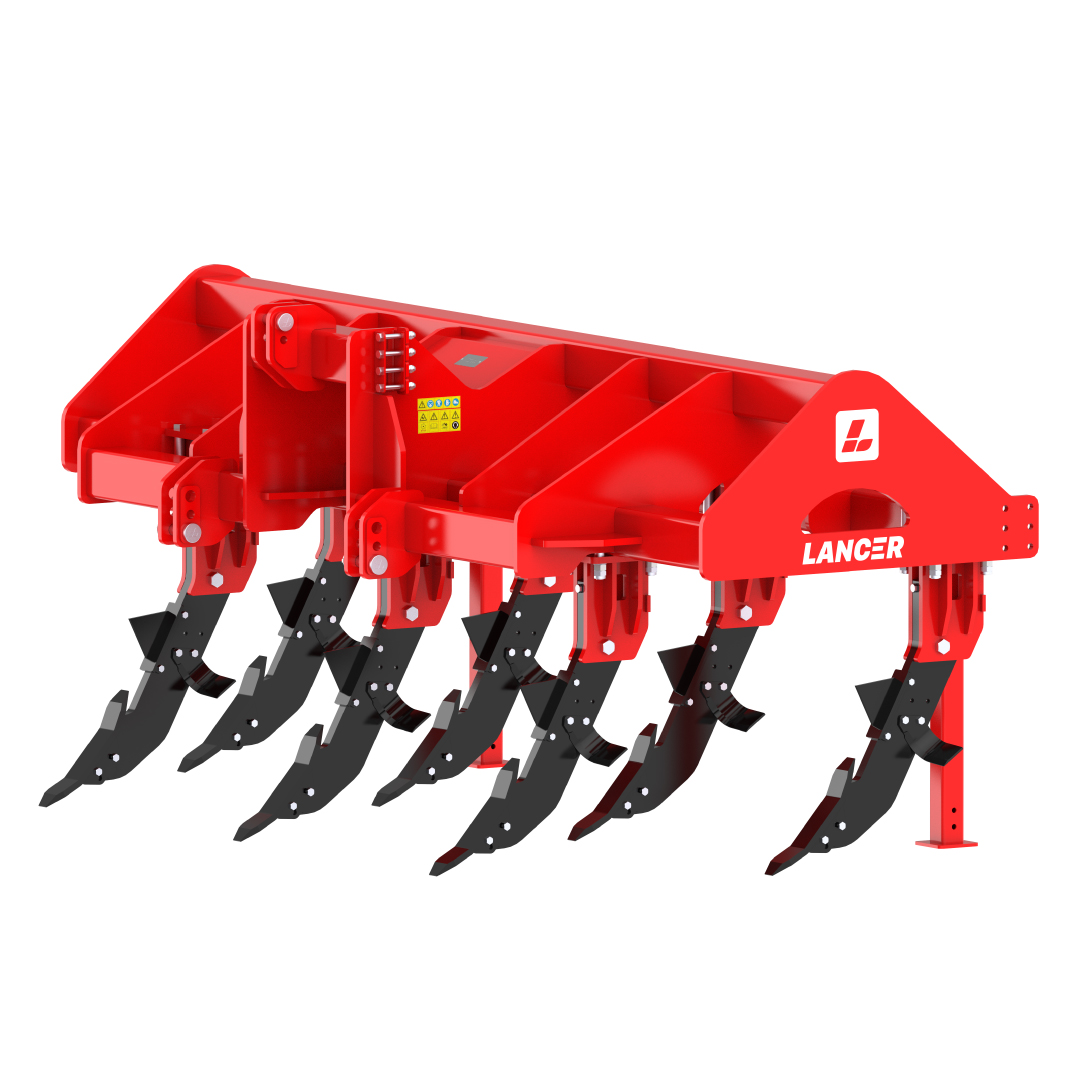

SUBSOILER/ SOIL RENOVATOR
KENCHUA
KX SERIES
Lancer Kenchua KX Series Sub-Soiler has
range of 250 CM to 400CM, which can be
coupled with 150 to 400 HP tractors. It is
mainly made from Virgin Material with
Rigid structure, High Strength material in
Shank and Wearing Point with perfect
finish to reduce load on tractor
Standard Equipment
- Shank thickness 35 mm
- Shank width adjustable
- Reversible quick-release blade
- Advanced Tool Kit.
- Shear Bolt Safety Mechanism
Technical Chart
Features
On Request
Technical Chart
| Model No. | Unit | KX 250 | KX 295 | KX 300 | KX 350 | KX 395 | KX 400 | |
|---|---|---|---|---|---|---|---|---|
| Working width |  |
mm | 2250 | 3030 | 3065 | 3550 | 4050 | 4070 |
| Number of shanks |  |
No | 5 | 5 | 7 | 7 | 7 | 9 |
| Center Distance between two shanks |
 |
mm | 560 | 680 | 460 | 540 | 625 | 470 |
| Working depth |  |
mm | 650 | 650 | 650 | 650 | 650 | 650 |
| Overall width Overall Height |
 |
mm mm |
2600 1610 |
3100 1610 |
3100 1610 |
3600 1610 |
4100 1610 |
4100 1610 |
| Weight Without Roller |  |
Kg Lbs |
1420 3131 |
1480 3263 |
1820 4012 |
1900 4189 |
1980 4365 |
2210 4872 |
| Tractor power |  |
HP KW |
150 – 250 112 -186 |
190 – 340 141 – 253 |
240 – 340 179 – 253 |
240 – 340 179 – 253 |
310 – 400 231 – 299 |
310 – 400 231 – 299 |
Features
Clod Breaking Blade
Rear Roller Height Adjustment
Wear Resistant Shank Protection
Easy Shank Width Adjustment
Side Guard Plates
Shear Bolt Safety Mechanism
Heavy Duty Shank
On Request
- Side Guard Plates
- Wear Resistant Shank Protection
- Clod Breaking Blades
- Mechanical Roller or Hydraulic Roller
Subsoiler/ Soil Renovator Kenchua
- Model : KL 3 - KL 5
- Require HP : 70 to 110
- Require KW: 52 to 82
- Model : 130-180-185-200-225-230-260-290
- Require HP : 60 to 220
- Require KW: 45 to 164
- Model : 130-180-185-200-225-230-260-290
- Require HP : 60 to 220
- Require KW : 48 to 186
- Model : 250-295-300-350-395-400
- Require HP : 150 to 400
- Require KW: 112 to 299
