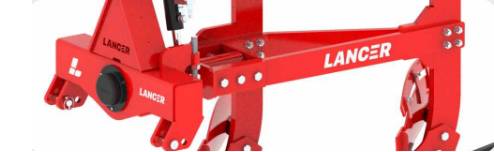

Lancer LRP series Hydraulic Reversible Plough is range of double & Triple Furrow, Which can be coupled with 30 to 60 HP tractors. It is mainly Made from Virgin Material with rigid structure, High Strength material in tines and furrow with perfect mold to reduce load on tractor and Ploughing made easy for all Farmers.

Standard Equipment

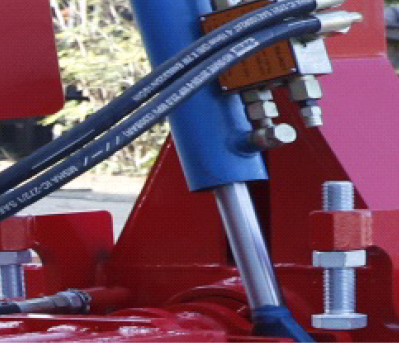

Plough Side Hydraulic Unit.
Advanced Tool Kit.
Three Point Hitch Cat II.

Technical Chart

Features

On Request

Technical Chart

Model No.	Unit	DL 226	DM 236	DL 240	DM 245	DM 250	DM 340	DM 345	DM 243	DM 245	DM 249	DM 250	DM 255	DM 260
Power Requirement	HP KW	25 – 30 18 – 22	40 – 45 30 – 34	45 – 50 34 – 37	50 – 55 37 – 41	55 – 60 41 – 45	45 – 50 34 – 37	50 – 55 37 – 41	40 – 60 30 – 45	45 – 60 34 – 45	50 – 60 37 – 45	55 – 65 41 – 48	65 – 75 48 – 56	65 – 75 48 – 56
Require Tractor Rear Tyre	Inch	12.4.28	13.6.28	14.9.28	14.9.28	16.9.28	free size	free size	13.6.28	14.9.28	14.9.28	16.9.28	18.9.28	18.9.28
Main Frame	mm	100×20	115×25	115×25	115×25	115×25	115×20	115×25	100X25	100X25	100X25	100X25	100X25	100X25
Overall Heigth	Inch	42	50	55	55	55	50	50	55	55	55	55	55	55
Working Width	Inch	18	24	28	28	32	35	35	26	28	30	36	36	36
Tines Thickness	mm	25	30	32	32	35	28	32	25	25	30	30	36	40
Tines Shape		E	E	E	E	E	E	E	C/E	C/E	C/E	C/E	C/E	C/E
Mould Board Thickness	mm	7	6	8	8	10	6	7	6	8	8	10	10	10
Distance Between Two Tines	Inch	9	10/12	12	12/14	14	10.5	10.5	10	11	11	12	12	12
Shear Length	Inch	12	15	15	15	18	15	15	15	16	16	18	20	20
Shear Thickness	mm	10	11	11	11	11	11	11	12	12	12	12	12	12
Weight	Kg. lbs	260 573	360 794	400 882	450 992	500 1102	400 882	450 992	435 959	450 992	490 1080	500 1102	550 1213	600 1323
